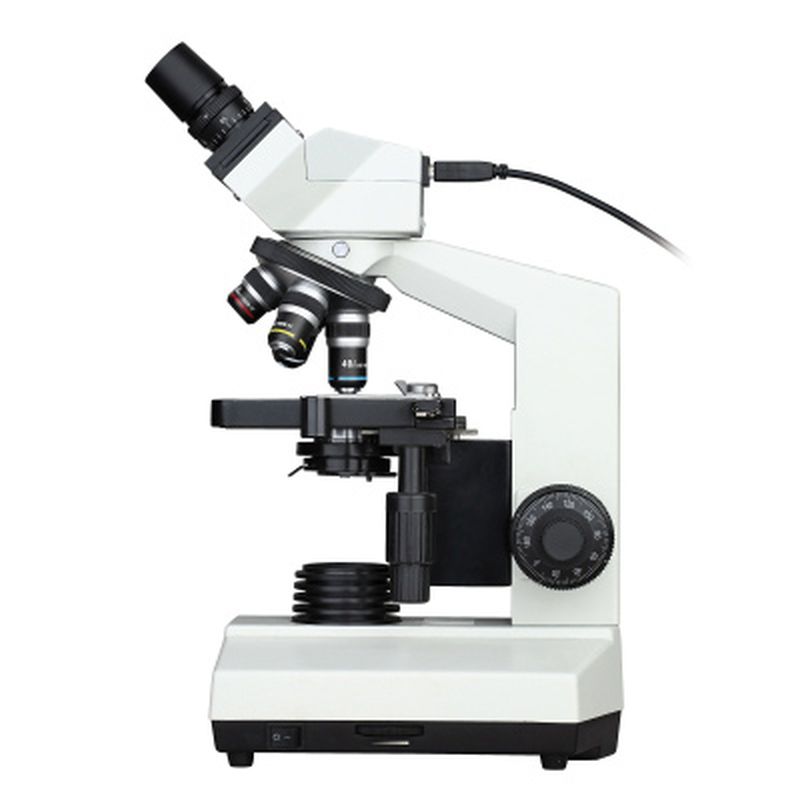

3B Digital Binocular Microscope with Built-In Camera

The 3B Digital Binocular Microscope with Built-In Camera is supplied with a built-in camera to allow the full documentation of the specimen, in full and authentic colour. The microscope is easy to use and has a robust design to ensure longevity. The mechanics and optical features are all constructed to the highest level to examine the specimen in intense detail.

Features of the 3B Digital Binocular Microscope with Built-In Camera

• Robust and durable design for a long-lasting microscope
• Easy and straightforward to use
• Built-in 1.3 megapixel camera to document the specimen in full colour
• Specimen can be viewed through the ocular and on a screen at the same time, with well-focused images being displayed
• "Scopelmage" software allows both static and video images, plus features editing and evaluation capabilities
• Supplied with a dust cover

Specifications of the 3B Digital Binocular Microscope with Built-In Camera

• Metal stand with arm firmly attached to the base
• Pinion knobs on either side control the coarse and fine focusing adjustments
• Rack and pinion drive for adjustments
• Binocular tube with 45° inclination and 360° head rotation
• Wide Field Eye Pieces: 10 x 18mm
• Revolving nose piece with 4 x achromatic objectives: 4x /0.10, 10x /0.25, 40x /0.65, 100x 1.25
• Enlargement: 40x, 100x, 400x, 1000x
• Object stage: x-y mechanical stage, 140 x 140mm with an object guide and an adjustment range of 75 x 50mm
• Adjustable 6V, 20W halogen lamp positioned in the base, operating on a 100V-240V, 50/60Hz power supply
• Abbe condenser N.A 1.25 with iris diaphragm, filter and filter holder
• Camera sensor: 1/3" CMOS, 1.3 megapixel colour image
• Power Supply: via USB 2.0
• System requirements: WIN2000, WINXP, Vista, WIN7, WIN8
• Dimensions: 220 x 180 x 390mm³
• Weight: 8.5kg

Delivery Information

The 3B Digital Binocular Microscope with Built-In Camera is usually delivered within 3 to 5 working days of ordering via UPS courier.
