Calorimeter with Heating Coil 150ml

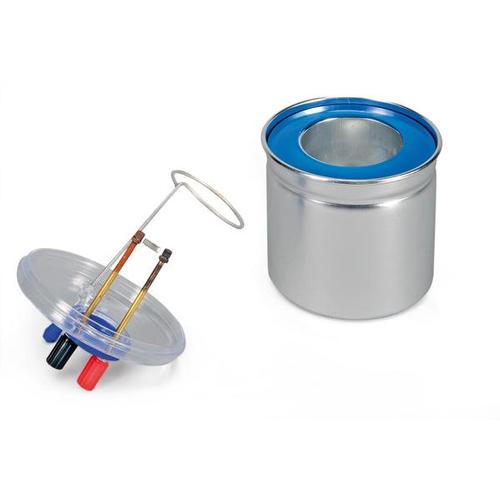

The Calorimeter with Heating Coil 150ml is for determining specific heat capacities, conversion energies of materials and mixing temperatures, as well as measurement of electrical equivalents of heat. Consisting of a double-walled, heat-insulating plastic container, an internal insulating vessel made of reflecting glass, holds the heating coil and stirrer. A lid with an opening for a thermometer and two 4mm plugs for connecting the power supply is supplied. The calorimeter is equipped with a heating filament, electrically insulated to avoid decomposition of filament and terminals due to electrolytic processes.

Specifications

• Max. heater voltage: 25V
• Max. heating power: approx. 160W
• Contents of insulated container: approx. 1200ml
• Dimensions: approx. 240mm x 120mm diameter
• Weight: approx. 0.8kg

Required Equipment

• P1000826 Aluminium Shot, 100g

Compatible Equipment

• P1000832 Aluminium Shot, 100g
• P1000833 Copper Shot, 200g
• P1000834 Glass Shot, 100g
• P1003312 DC Power Supply, 0 - 20V, 0 - 5A (230V, 50/60Hz)

or

• P1003311 DC Power Supply, 0 - 20V, 0 - 5A (115V, 50/60Hz)
