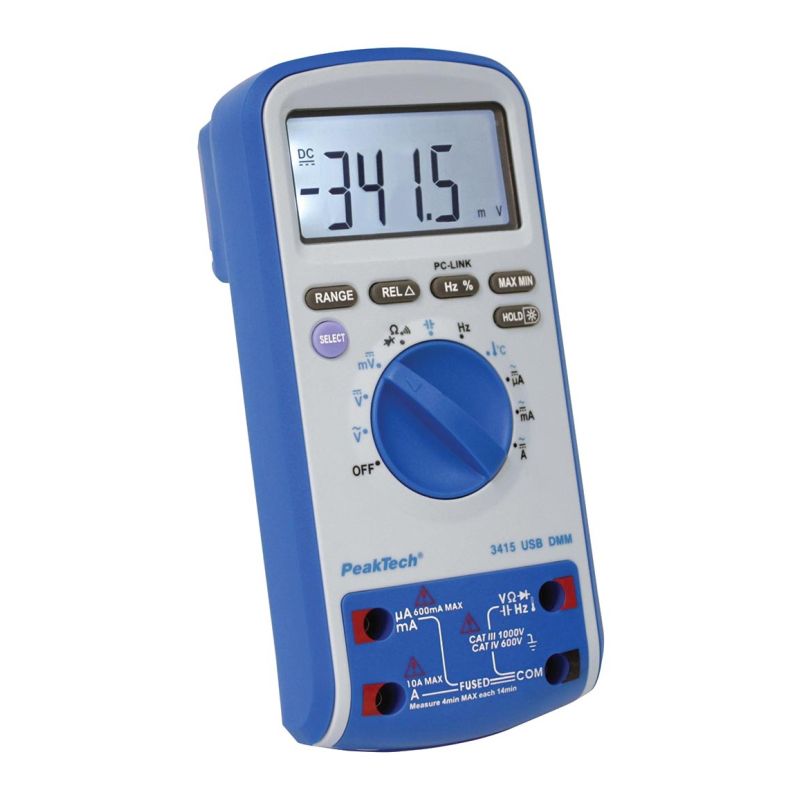

digital multimeter p3415

This innovative digital multimeter uses an opto-coupled USB cable to connect directly to a computer, allowing you to record up to three measurements per second. The Digital Multimeter P3415 is a highly versatile stand-alone tool with a wide range of functionalities.

Measuring modes include DCV, ACV, DCA, ACA, resistance, diode, continuity, frequency, capacitance and temperature.

The unit is supplied with a carrying case, for portability. It also comes complete with a USB cable, Software for Windows 2000/XP/Vista/7, type-K thermocouple, test leads, test clips, battery and operation manual, ready to use.

features of the digital multimeter p3415

• Opto-coupled USB cable connects directly to PC
• Can record up to 3 measurements per second
• Autoranging
• Relative measurements
• Min/Max/Hold
• DCV, ACV, DCA, ACA measuring modes
• For measuring resistance, diode, continuity, frequency, capacitance and temperature
• Carry case included
• USB cable and software for Windows 2000/XP/Vista/7 included
• Type-K thermocouple, test leads, test clips, battery and operation manual included

Technical specification

• Dimensions: approx. 90 x 190 x 40mm³
• Weight: approx. 500g
• DC voltage: 600mV – 1000V, 5 ranges
• AC voltage: 600mV – 700V, 5 ranges
• DC current: 600μA – 10A, 6 ranges
• AC current 600μA – 10A, 6 ranges
• Resistance: 600Ω- 60MΩ, 6 ranges
• Frequency: 100Hz – 1MHz, 5 ranges
• Capacity: 60nF – 300μF, 5 ranges
• Temperature: -55°C – 1000°C, 2 ranges
• Display: 3 5/6 digit LCD, 18mm
• Operating voltage: 9V battery (included)
• Safety classification: CAT II (IEC-1010-1)
