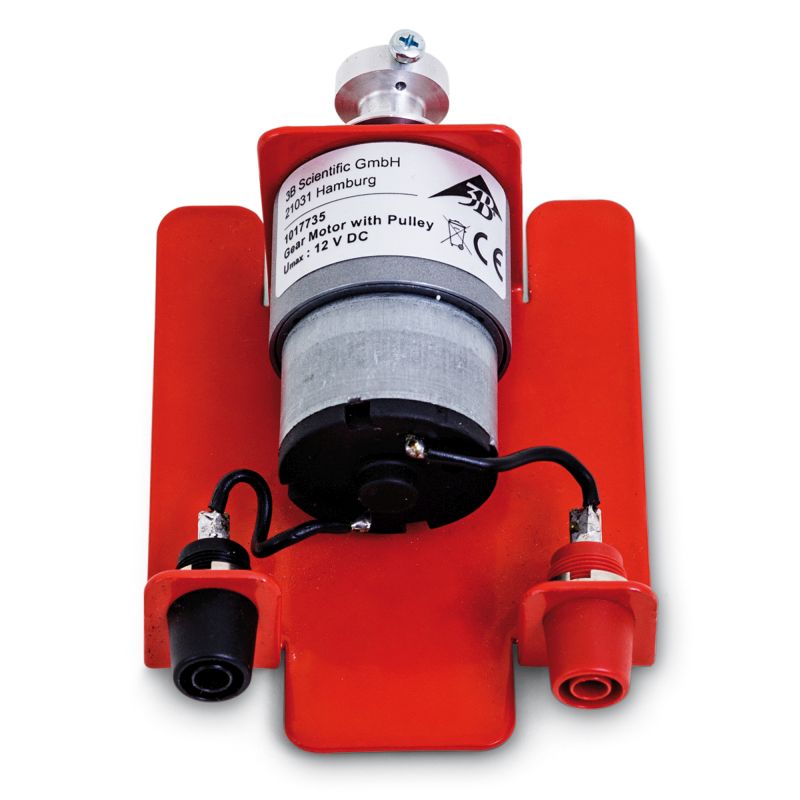

Geared Motor with Pulley

The Geared Motor with Pulley is designed to act as a load for demonstrating the conversion of energy with the Solar Energy Advanced Student Experiments Kit.

Mounted on Base Plate

The motor is mounted on a base plate to keep it stable while it is active, making it easier to use it during experiments. The motor also features a pulley attached for a string, making the motor easier to use overall.

Maximum weight Capacity

The Geared Motor with Pulley can pull a maximum of 1 kilogram.

Technical Specifications

The technical specifications of the Geared Motor with Pulley are:

• Power supply: 12V DC max
• Load current - 50mA max
• Torque: 0.41 Nm
• Speed: 76.1RPM (no load)
• Connectors: 4mm safety sockets for power
• Weight: 220g max
