Gyroscope

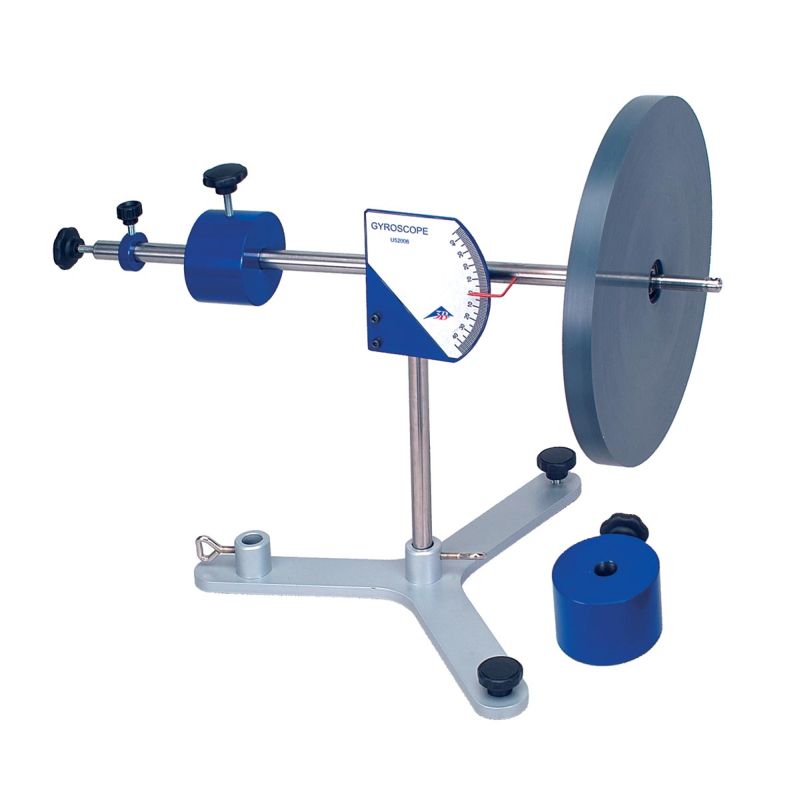

The Gyroscope uses high quality precision to demonstrate gyroscopic laws through practical experiments. The shaft can be tilted and rotated while attached to a stand rod with a disc mounted on dual ball bearings. A moveable counterweight is positioned opposite to create equilibrium and the thumb screws allow the apparatus to be finely adjusted. A readable scale allows for the measurement of the angle of inclination of the shaft while a spirit level ensures it is reset to a level position after each use. The rotation is nearly frictionless and can continue for a length of time. The open construction of the equipment enables full observation of the process.

Features of the Gyroscope

• High quality precision
• Demonstrates gyroscopic laws
• Rotatable and tilting shaft
• Stand rod
• Disc mounted on dual ball bearings
• Moveable counterweight
• Thumb screw for fine adjustment
• Additional weight generates external torque
• Readable scale
• Disc set by hand or cord
• Spirit levels ensures shaft is set horizontally
• Nearly frictionless rotation due to dual ball bearings
• Rotation continues for a lengthy period of time
• Open construction allows easy observation

Technical Specifications of the Gyroscope

• Scale: -40° to + 40°
• Scale divisions: 1°
• Disc: 250mm diam
• Mass of disc: 1500g
• Mass of counterweight: 1400g
• Mass of additional weight: 50g
• Total Weight: 4650g
