Heat Conduction Equipment SeT

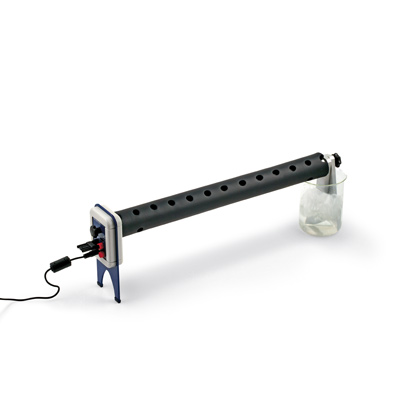

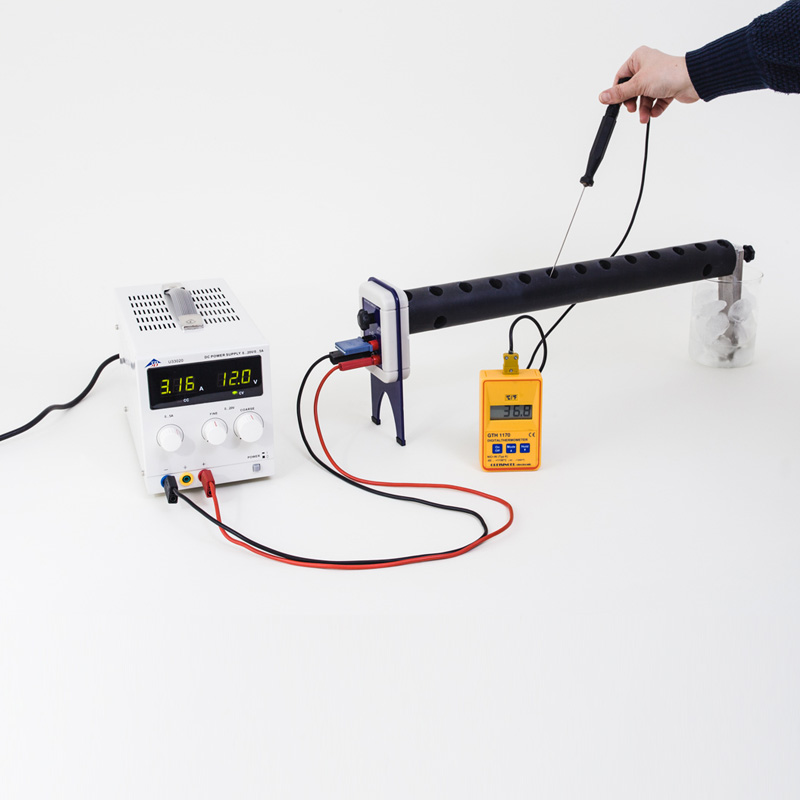

The Heat Conduction Equipment Set is an apparatus kit for investigating the heat conducting capabilities of metals in complete safety. The equipment set consists of an electronically regulated heat source for warming up a heat conducting rod, an insulating sleeve to reduce loss of heat to the surroundings and improve the linearity of the temperature profile, plus cooling baffles which can be used to radiate heat away from the apparatus. With a voltmeter and ammeter connected, it is possible to determine the electric power supplied to achieve the heating.

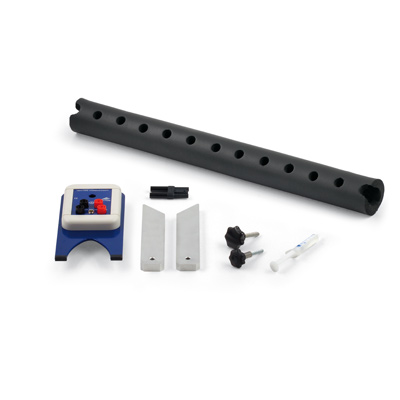

Kit Contents

• 1 x Heating module
• 1 x Insulating sleeve
• 1 x Cooling baffle (heat sink)
• Heat conducting paste

Specifications

• Maximum heating capacity: 43W approx.
• Maximum heat loss: 4.5W
• Temperature of heat source: 105°C
• Operating voltage 12V DC
• Maximum heating current 3.6 A

Required Equipment

• P1017331 Heat Conducting Rod, Aluminium
• P1017330 Heat Conducting Rod, Copper
• P1017579 Table Top Power Supply

or

• P1003312 DC Power Supply, 0 - 20V, 0 -5A (230V, 50/60Hz)
• P1003312 DC Power Supply, 0 - 20V, 0 -5A (115V, 50/60Hz)
