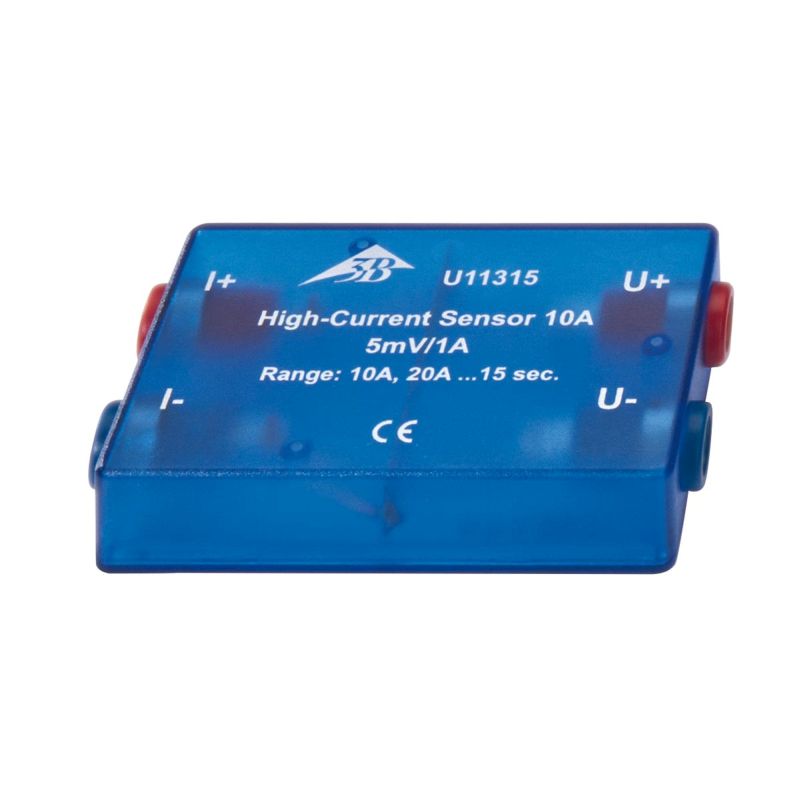

High Current Sensor 10A

The High Current Sensor 10A is a temperature sensor for measuring high electric currents is circuits using a shunt resistor. The sensor is suitable for both DC and AC currents.

This sensor can withstand currents up to 20 amps for a short period of time.

Manual Measurements and Computer PRocessing

The temperature sensor is compatible with the 3B NETlog Data Logger and Acquisition Interface, enabling manual measurements to be taken and for the data to be processed using a computer. It includes a connector lead with 8-pin miniDIN plugs.

Technical Specifications

The technical specifications of the High Current Sensor 10A are:

• Measurement range: 0 to ±10A
• Maximum current loading: ±20A for 15 seconds
• Accuracy: <1%
• Sensor type: Shunt resistor - 5 mΩ/2W
