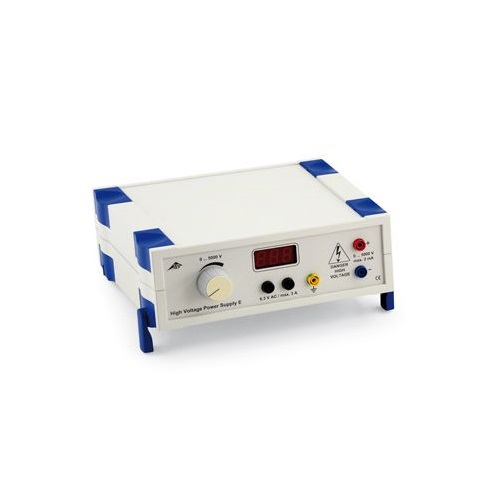

high voltage power supply e 5kv

A universally applicable, floating, high-voltage source for electrostatic experiments. The High Voltage Power Supply E 5kV is also for operating spectral tubes, gas discharge tubes and electron tubes.

With built-in transformer resistance to external voltage, this device provides the heating voltage for electron tubes. Continuously adjustable high-voltage source, which is safe to touch, passive current limiting and digital voltage display are further features of the user-friendly High Voltage Power Supply.

electron tubes

The High Voltage Power Supply E 5kV is ideal for operation of numerous electron tubes:

• Very high-quality and extremely lightweight equipment in modern casing
• 3-digit digital display for high voltage
• Regulated high-voltage output not dependent on mains voltage
• High-voltage-proof supply for heater voltage
• No need to change fuses

technical specification

• Dimensions: approx. 240 x 220 x 90mm
• Weight: approx. 2kg
• High-voltage output: 0 - 5000V DC, max. 2mA, floating
• Heater voltage output: 6.3V AC, max. 3A, resistance to voltage up to 5kV
• Overload protection: reversible fuse, 3A
• Connectors: 4mm safety sockets
• Power consumption: 35VA
• High-voltage display: 3-digit LED
