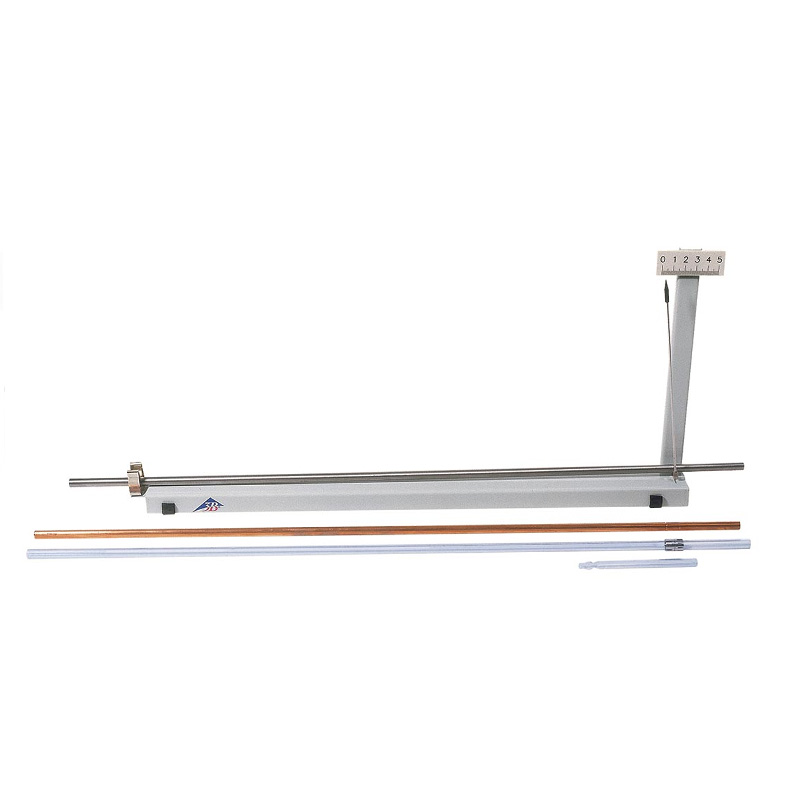

Linear Expansion Apparatus S

The Linear Expansion Apparatus S is a device for measuring the thermal expansion of solids in dependence on length and material. The scope of delivery includes three sample tubes (steel, brass and glass) which are heated by passing water vapour through them. The total kit comprises a base strip with a fixed bearing, pilot bearing, pointer and projectable scale.

Specifications

• Scale dimensions: approx. 140 x 200mm²
• Measuring range: 1mm
• Reading accuracy: 0.05mm
• Tube length: approx. 630mm
• Dimensions: approx. 530 x 60 x 240mm³
• Weight: approx. 0.6kg

Required Equipment

• P1001049 Steam Generator (230V, 50/60Hz)

or

• P1006769 Steam Generator (115V, 50/60Hz)
• P1002622 Silicone Tubing 1m
