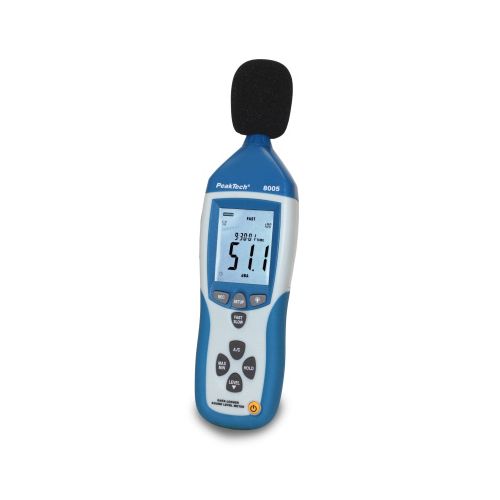

noise level meter p8005

A digital sound meter used to measure all types of sound levels in your environment. A circuit for suppressing background noise allows the Noise Level Meter P8005 to pick up specific sounds more precisely. This makes the device ideal for use in a range of environments, such as your household, office or school.

The Noise Level Meter can be used in experiments and investigations, for instance in noise-reduction projects, or for when monitoring the impact of traffic noise.

Thanks to its built-in USB port, the supplied 9V mains adapter and stand, it is also suitable for permanent or long-term measurement. This product comes complete with Windows software, 9V battery and instruction manual, ready for use.

features of the noise level meter p8005

• Circuit suppresses background noise
• Measures all types of sound levels
• Can be used in a range of environments
• Choice between manual or automatic selection of levels and measurements of minimum and maximum levels
• Built-in USB port
• Windows software included
• 9V mains adapter and battery included
• Case included - for protection if using on-the-go
• Stand included - to mount product if using in one place, suitable for long-term measurement
• Instruction manual included

Technical specification

• Dimensions: approx. 90 x 280 x 50mm³
• Weight: approx. 350g
• Digital display: 4 digit LCD
• Height of digits: 20mm
• Multi-functions display: 58 x 44mm², digital display of measurement, measuring time, bar graphs plus overs and unders
• Background lighting: blue
• Applicable standards: IEC-61672-1 type 2, ANSI S1.4 type 2
• Frequency range: 31.5Hz − 8kHz
• Dynamic range: 50dB
• Level ranges:
  • 30 − 80dB (low)
  • 50 − 100dB (medium)
  • 80 − 130dB (high)
  • 30 − 130dB (automatic)
• Resolution: 0.1dB
• Precision: ± 1.4dB
• Response times: 125ms (fast), 1s (slow)
• Microphone: ½-inch, with electret capacitor
• Display update: twice a second
• Analog output: AC/DC
• Operating voltage: 9V battery or 9V mains adapter
