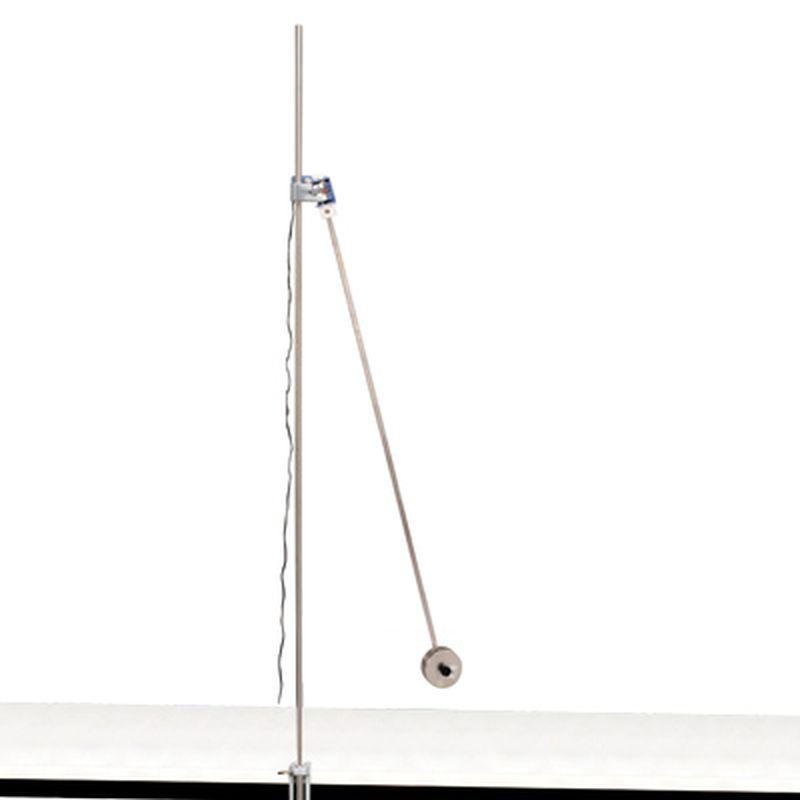

Pendulum Rod with Angle Sensor

The Pendulum Rod with Angle Sensor is designed for measuring the motion of a weighted pendulum with a movable weight. The low-friction, pointed bearings and electromagnetic angle sensor enable the oscillation to be recorded and a power supply is provided for immediate use. The pendulum rods provides clear and visible results through simple to use apparatus.

Features of the Pendulum Rod with Angle Sensor

• Measures the simple, harmonic movement of a weighted pendulum
• Electromagnetic angle sensor
• Low-friction needle bearing
• Provided with a plug-in power supply
• Hall sensor used to detect the deflection of the pendulum
• Oscillation can be recorded
• Visible results
• Straightforward and easy to use

Technical Specifications of the Pendulum Rod with Angle Sensor

• Length of pendulum: 1m
• Mass of pendulum: 1kg
• Output voltage: ± 5V
• Output resistance: 500Ω
• Power supply: 12-16V AC
• Diameter of tube: 10mm
• Weight: 1.4kg

The Pendulum with Rod Sensor is available with either a 230V or a 115V charge.

Required Equipment for the Pendulum Rod with Angle Sensor

• Table clamp
• Stainless steel rod, 1000mm
• Universal Clamp

Compatible Equipment for the Pendulum Rod with Angle Sensor

• 3B Net/og (230V, 50/60Hz) OR 3B Net/og (115V, 50/60Hz)

Delivery Information

The Pendulum Rod with Angle Sensor is usually delivered within 3 to 5 working days of ordering via UPS courier.
