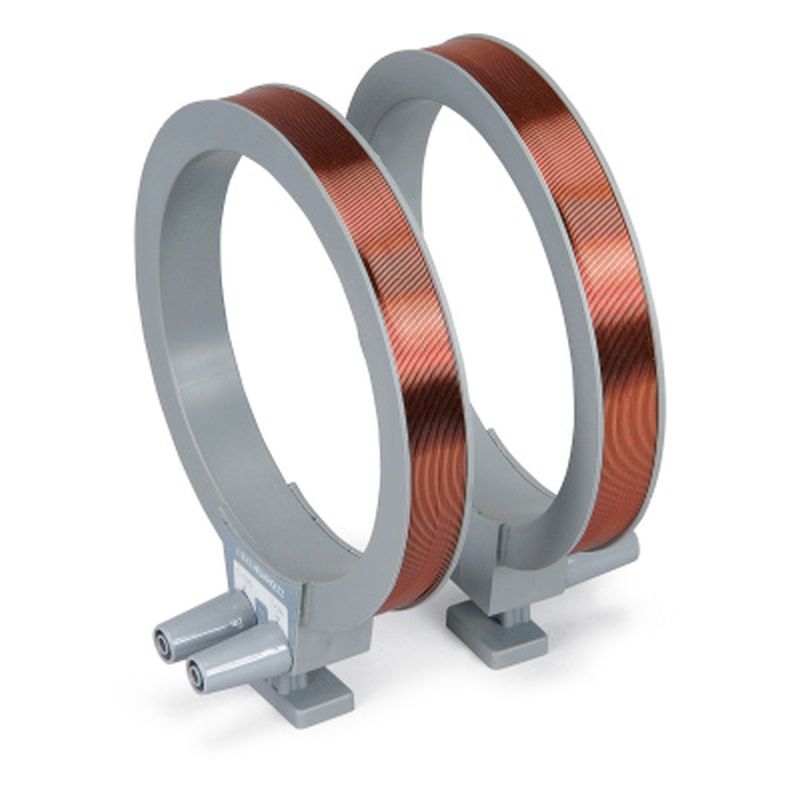

Teltron Helmholtz Pair of Coils, S

The Teltron Helmholtz Pair of Coils, S are designed for use with any of the Teltron S Series tubes to create a uniform magnetic field. When used in conjunction with Tube Holder S, the magnetic field is perpendicular to the axis of the tube. Supplied in a plastic sleeve, the coils are positioned on an insulated stand rod.

Features of the Teltron Helmholtz Pair of Coils, S

• Supplied in pairs
• Generates a uniform magnetic field
• Use with tubes in the Teltron "S" series
• Perpendicular magnetic field when using the tube holder
• Comes in plastic sleeves
• Based on an insulated stand rod
• Easy to connect
• Straightforward to use

Technical Specification of the Teltron Helmholtz Pair of Coils, S

• Number of turns: 320 each
• Coil diameter: 138mm each
• Load rating: 1.0A (continuous operation) each / 1.5A (short term operation)
• Effective resistance: 6.5Ω each
• Terminals: 4mm safety sockets
• Holding material: Coils are air-filled, lacquered copper wire on a plastic bobbin
• Axial Field Strength: Approximately 9mT

Compatible Equipment with the Teltron Helmholtz Pair of Coils, S

• DC Power Supply 0-20V, 0-5A (230V, 50/60Hz) OR DC Power Supply 0-20V, 0-5A (115V, 50/60Hz)
