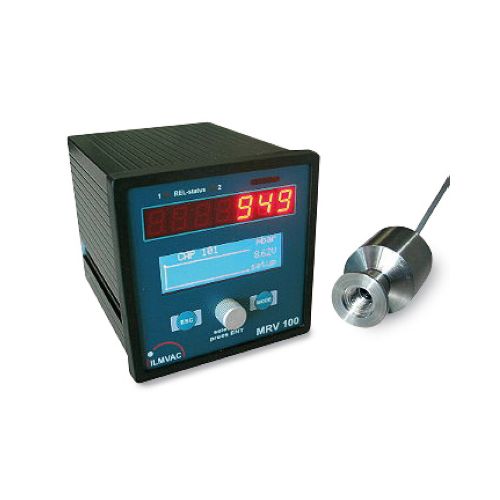

Pirani Vacuum Gauge

The Pirani Vacuum Gauge is an easily programmable desktop device for measurement and control in fine and coarse vacuums.

The device features a clearly arranged membrane keypad and measuring line (2.5m). It also includes a mains cable, ready for use.

Technical Specification

• Dimensions: approx. 90 x 120 x 90mm³
• Weight: approx. 0.9kg
• Vacuum connection: DN 16 KF
• Measuring range: 1100 – 0,001 hPa
• Measurement uncertainty: < 20% of the display value
• Display: digital LED display in mbar, Pa, psi, torr
• Digit height: 10mm
• Readout: 5/s
• Threshold switch: 2 x 230V, 2 A, independently adjustable
• Switching accuracy/hysteresis:  ± 1 digit
• Permissible overload: 2 bar absolute
• Power consumption: max. 15 W
• Supply voltage: 100/115 /230 V, 50/60Hz
