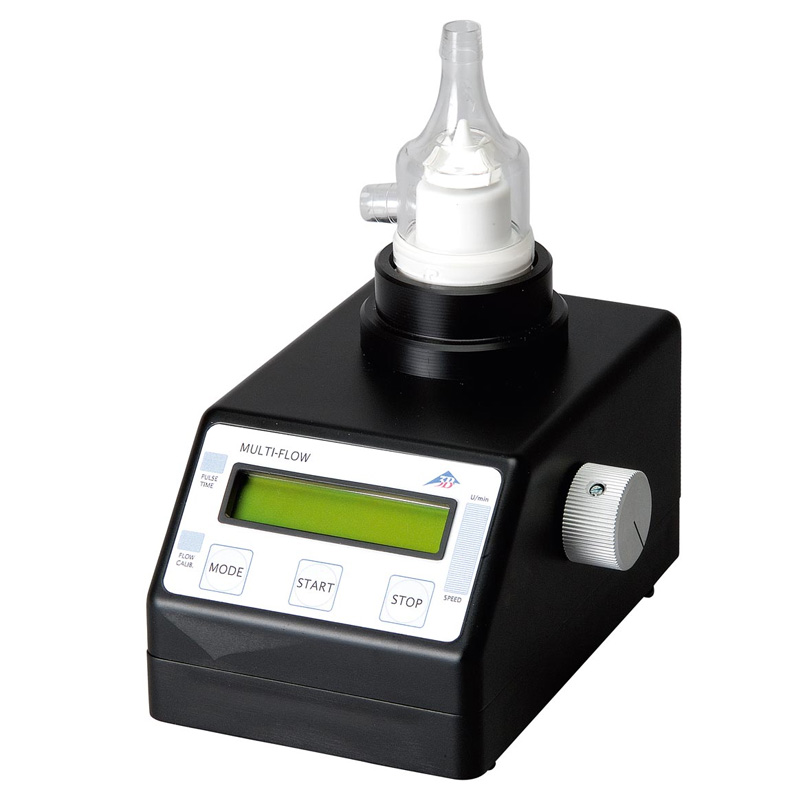

Centrifugal Pump

The Centrifugal Pump allows for the transporting liquids at a constant flow velocity which can be regulated continuously to any value and intended for the investigation of flow phenomena with laminar flow profiles. The pump has 3/8" plug-in connectors for insertion into compatible apparatus. The display can be switched to show either speed or flow, with the latter able to be calibrated to match flow pressure. For Doppler sonographic experiments using a so-called arm phantom to simulate a real arm, the pump can be set to provide a pulsing flow (to simulate a heart beat) with a variable pulse frequency, generating ultrasonic signals typical for vascular diagnosis.

Specifications

• Connectors: 2 x 3/8"
• Maximum flow rate: 6 l/min
• Display: LCD
• Mains voltage: 90 to 230V (50/60Hz)

Required Equipment

• P1002582 Ultrasonic Probe 2MHz
• P1002572 Set of Doppler Prisms and Flow Tubes
• P1002573 Riser Tubes for Pressure Measurement
• P1002575 Centrifugal Pump
• P1008575 Ultrasonic Coupling Gel
• P1012880 Arm Phantom Set
• P1002574 Doppler Phantom Fluid
