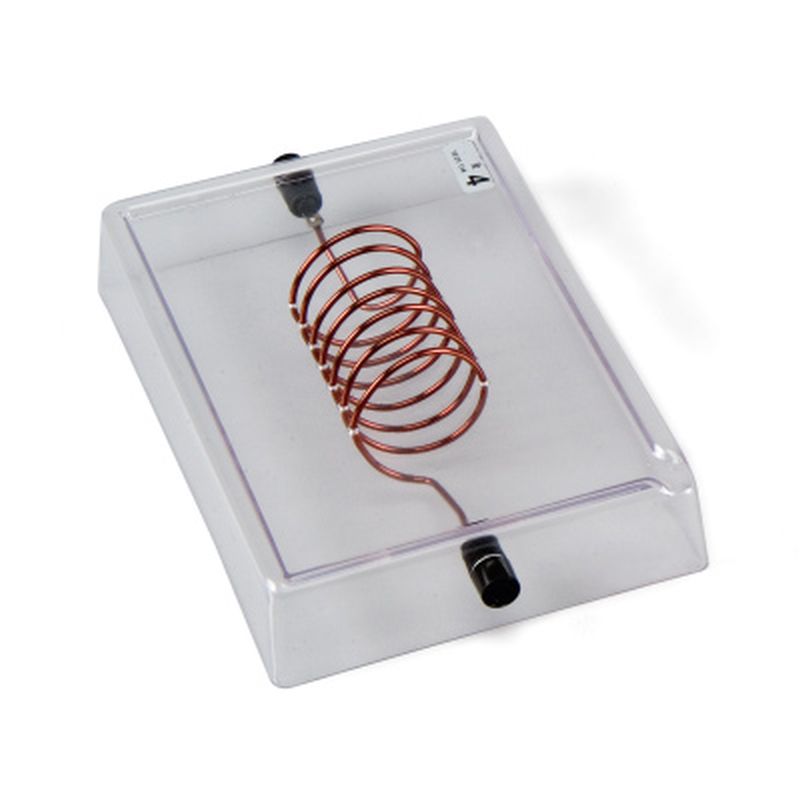

Coil on Acrylic Base

The Coil on Acrylic Base is ideal for demonstrating the magnetic fields of current-carrying conductors by making the magnetic lines visible. With the use of iron filings, the coil displays any patterns formed by the conductors for clear and obvious results. The coil is situated on an acrylic glass base with two 4mm safety sockets and should be used alongside an overhead projector.

Features of the Coil on Acrylic Base

• Makes magnetic fields visible
• Use with current-carrying conductors
• Iron filings make the field apparent
• Based on acrylic glass
• 2 x 4mm safety sockets in position
• Use with an overhead projector
• Clear and visible results

Technical Specification of the Coil on Acrylic Base

• Base dimensions: 185 x 150 x 30mm³
• Number of turns: 7
• Coil diameter: 35mm
• Coil length: 65mm

Required Equipment for the Coil on Acrylic Base

• DC-Power Supply, 0-16V, 0-20A (230V, 50/60Hz) OR DC-Power Supply, 0-16V (115V, 50/60Hz)
• Iron Filings
• Shaker
