Electrochemistry Case
 Electrochemistry CaseElectrochemistry Case
Zoom  Zoom

Electrochemistry Case

£626.61  exc. VAT
(£751.93 Inc. VAT)

Free delivery orders 50+
Availability: In Stock Image
  • Everything you need for basic experiments on electrochemistry
  • Easy-to-clean case for convenience
  • Provided with a power supply for immediate use
  • Comes with measuring devices for current and pH values
Fast Delivery Of Laboratory Supplies And Scientific EquipmentWe Accept Purchase Orders At Lab World For Laboratory Supplies And Scientific ApparatusLab World Have Product Experts To Help You Choose The Right Piece Of Lab Equipment Or Scientific Equipment
Fast UK Delivery From Lab World On Laboratory Equipment And Scientific Supplies
Ask A Lab World Product Expert About Our Laboratory Apparatus And Scientific Equipment
We Accept Purchase Orders For Laboratory Equipment And Scientific Products
Related Products

Electrochemistry Case

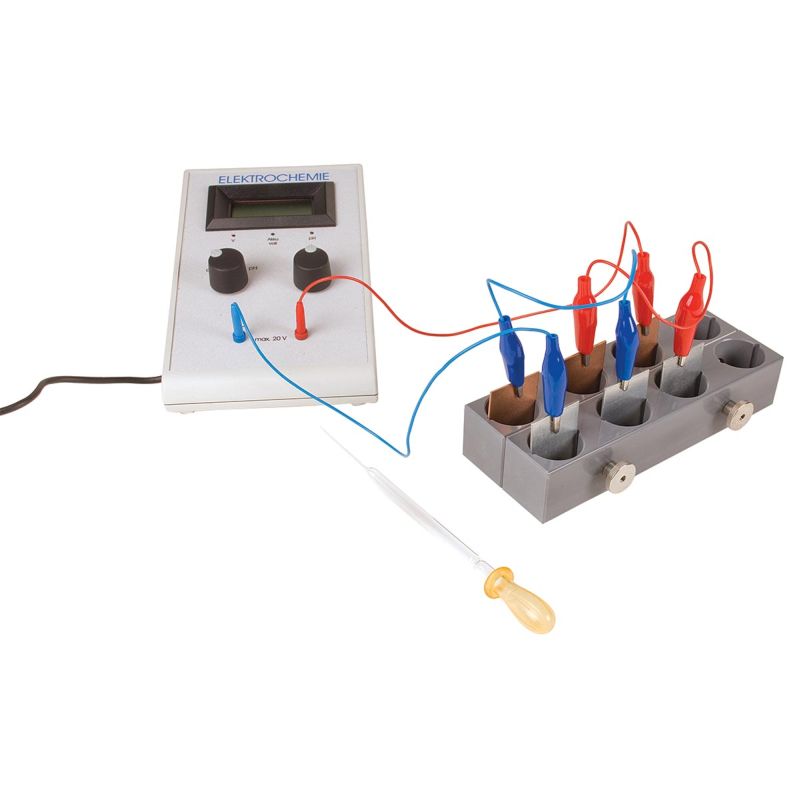

The Electrochemistry Case contains everything you need for basic experiments on electrochemistry, storing the components safely when they are not required. The cell block case is made from tough plastic and allows four galvanic cells to be connected in parallel. The container can be unscrewed and split in half for ease of cleaning with a piece of filter paper stretched between the two halves acting as a diaphragm.  A durable and highly resistant meter is provided to measure currents and pH values, distinguishing between close readings. Easy to store with all the components secured, the kit has everything you need for electrochemistry experiments.

Features of the Electrochemistry Case

  • Sturdy and durable case
  • Safely stores all of the components
  • Easy cleaning
  • Can be unscrewed and split in half
  • Filter paper acts as a diaphragm

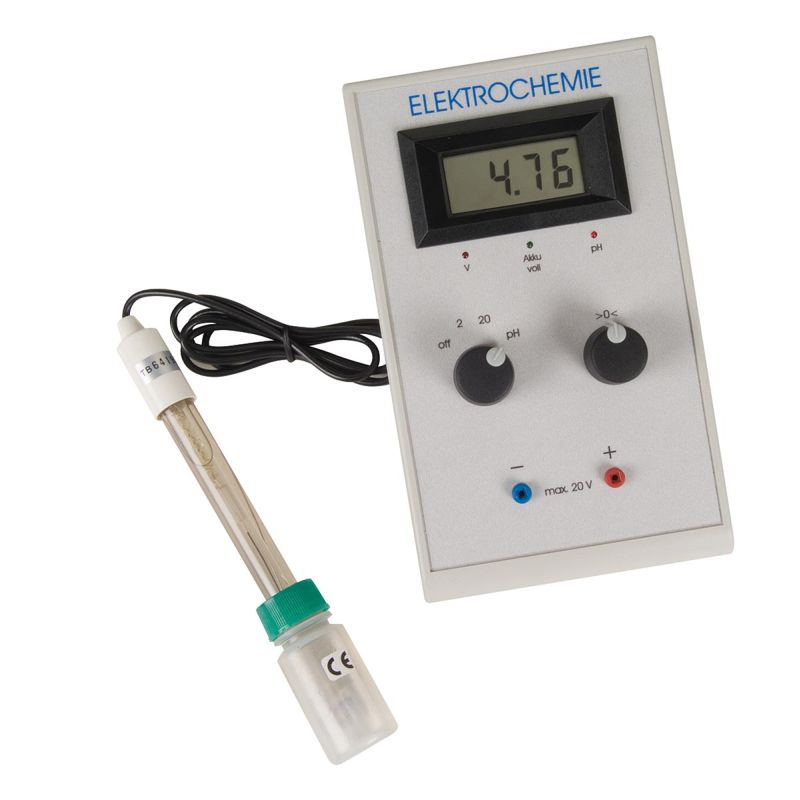

  • High-resistance meter for measuring current and pH values
  • Supplied pH measuring probe
  • Contains a vast range of electrodes
  • Comes with a power supply

What Does the Electrochemistry Case Contain?

1 x foam lined case

2 x Fe-electrodes, 42x28mm² 2 x C-electrodes, 42x28mm²

1 x measurement device

1 x sanding block - for cleaning electrodes 3 x experiment cables with crocodile clips, 20cm, blue

1 x pH combined electrode with BNC plug

2 x Al-electrodes, 42x28mm² 1 x experiment cable with crocodile clip and 2mm plug, 30cm, red
1 x plug-in power unit - 12V DC/500mA for 115/230V AC mains voltage 2 x Ni-electrodes, 42x28mm² 1 x experiment cable with crocodile clip and 2mm plug, 30cm, blue
1 x cell block - fitted with filter paper 4 x Cu-electrodes, 42x28mm² 2 x graduated plastic beakers, 25ml
2 x Ag-electrodes, 42x28mm² 1 x Mg-electrode, 42x28mm² 2 drip pipettes with suction bulbs

1 x Pt-electrode, 42x28mm


1 x filter papers (50 units) 1 x storage box with lose insert
4 x Zn-electrodes, 42x28mm²
3 x experiment cables with crocodile clips, 20cm, red 1 x operating instructions on CD-ROM

Technical Specifications of the Electrochemistry Case

  • 7 segment display: 3 digit
  • Height: 13mm
  • Voltage Ranges: 2V DC and 20V DC
  • Resolution: 1mV
  • Input Resistance: 200MΩ
  • pH measuring range: 0.0 - 14.0pH
  • Power supply: Plug-in power supply, 12V/0.5A
  • Dimensions: 42.2 x 31 x 17cm
  • Weight: 2.4kg

Delivery Information

The Electrochemistry Case is usually delivered within 3 to 5 working days of ordering via UPS courier.

If you would like up to the minute delivery and tracking information for your order, please contact the Lab World Customer Care Team by telephone on 020 7501 1105 or by email using the form below. We look forward to helping you with your enquiry.
