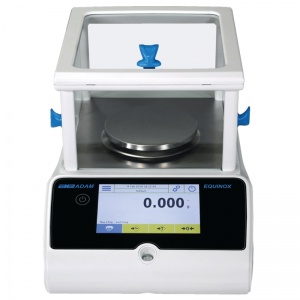

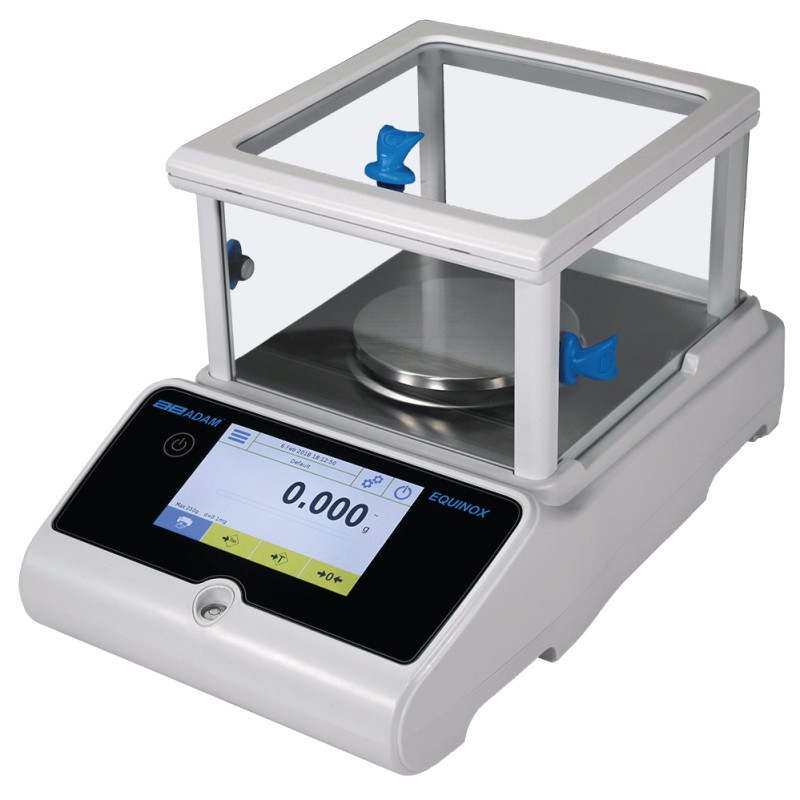

Equinox EPB 363i Precision Balance (360g Capacity)
To save time in fast-paced laboratory environments, a balance that is precise, yet still capable of measuring large samples can be very helpful. The
Equinox EPB 363i Precision Balance (360g Capacity) has a capacity range of 20mg - 360g, but offers 0.001g readability, making it ideal for such situations. It is also very accessible and user-friendly due to its touchscreen display, and additionally features a draught shield which helps reduce the effects of draughts, static and vibrations. Please note that a calibration certificate for this device must be purchased at the same time by ticking the box at the top of the page. You cannot purchase this certificate for a balance or scale that has already been ordered. Offers Capacity and Precision
Precision balances are also known as 'top loading balances', and are typically used to measure sample sizes as large as one milligram. While they are not as precise as semi-micro or analytical balances, they typically have much larger capacities and are still able to return highly precise readings compared to standard scales.
Applications for the Equinox EPB 363i Precision Balance
Capable of precisely measuring loads weighing up to 360g, the Equinox EPB 363i Precision Balance is suitable for use in a number of applications, including:
Quality Assurance Science Education Research Production and Manufacturing Precision Counting Dynamic weighing (e.g. animal weighing) Textiles What Is the Capacity of the Equinox Balance?
The capacity of the Equinox EPB 363i Balance ranges from 20mg - 360g, with a readability of 0.001g. As it is suitable for measuring large samples and can still return a highly precise figure, it is a great choice for use in production or quality assurance.
How Do I Operate the Equinox EPB 363i Precision Balance?
The Equinox EPB 363i balance has an easy-to-read 5" (800 x 480 pixels) display for optimal visibility. The display is touchscreen and features a pictorial menu that can be easily operated no matter how tech savvy you are. For detailed information on the set-up and use of your Equinox EPB Balance, please see the PDF Instruction Manual below:
User Instructions How Do I Calibrate the Equinox EPB 363i Precision Balance?
The EPB 363i Balance has an in-built automatic calibration function. This means the scale won't require such extensive preparation before use and can be pre-set to adjust itself in the event of a power cut or if environmental factors change.
Date and Time Printouts for Data Traceability
In adherence with Good Laboratory Practise (GLP) guidelines, data printouts supplied by the Equinox EPB are time and date stamped for improved traceability. This can help you keep track of your processes for a more functional, organised laboratory environment.
What Security Features Does This Balance Have?
This balance comes with both physical and software-based security features. Firstly, the software allows users to make password-protected accounts, so settings cannot be changed and data cannot be accessed without proper authorisation. Secondly, a security slot compatible with Kensington-type locks can be engaged so the balance can't be taken out of the work place.
Specifications of the Equinox EPB 363i Precision Balance (360g Capacity) Capacity: 360g Readability: 0.001g Repeatability: 0.6mg Calibration: Internal Automatic Calibration Pan Size: 110mm diameter Power Supply: 9VDC 1A adapter Interface: RS-232 (for computers and printers), USB (for memory cards etc.) Total Weight: 6.9kg Weighing Units: g, mg, ct, GN, lb, oz, dwt, mm, ozt, tl.H, tl.S, tl.T, T and custom unit Time to Stabilisation: 2 seconds Materials: ABS Plastic Linearity: 0.003g Operating Temperature: 10° to 30°C Display Size: 5" (800 x 480 pixels) Dimensions: 224 x 374 x 219mm (WxDxH) Key Features and Benefits VIDEO 5" colour touch-screen display is easy to read and interact with Glass shield protects against draughts and static Printouts are marked with date and time for more coherent data tracking Digital filtering function allows you to factor in vibrations and other environmental disturbances 3000 item database allows you to save items, sample weights and check weighing limits In-built tare function (resets measurement to zero) allows you to measure samples with containers, and improves repeatability RS-232 interface enables straightforward connection to computers and printers Security measurements protect data and prevent unwanted setting changes Spirit level and adjustable feet for easy set-up Multilingual display makes balance more widely accessible Are Other Models Available?
The Equinox EPB 363i Precision Balance (360g Capacity) is available in 10 other models, each with a varying maximum capacity or calibration type. The table below showcases these differing features and contain a link to each model.
All Adam Equipment scales and balances are calibrated before dispatch, and information on their performance and accuracy is recorded on their calibration certificates. You must purchase this certificate at the same time as your scale or balance by ticking the Adam Equipment Calibration Certificate box at the top of the page.
