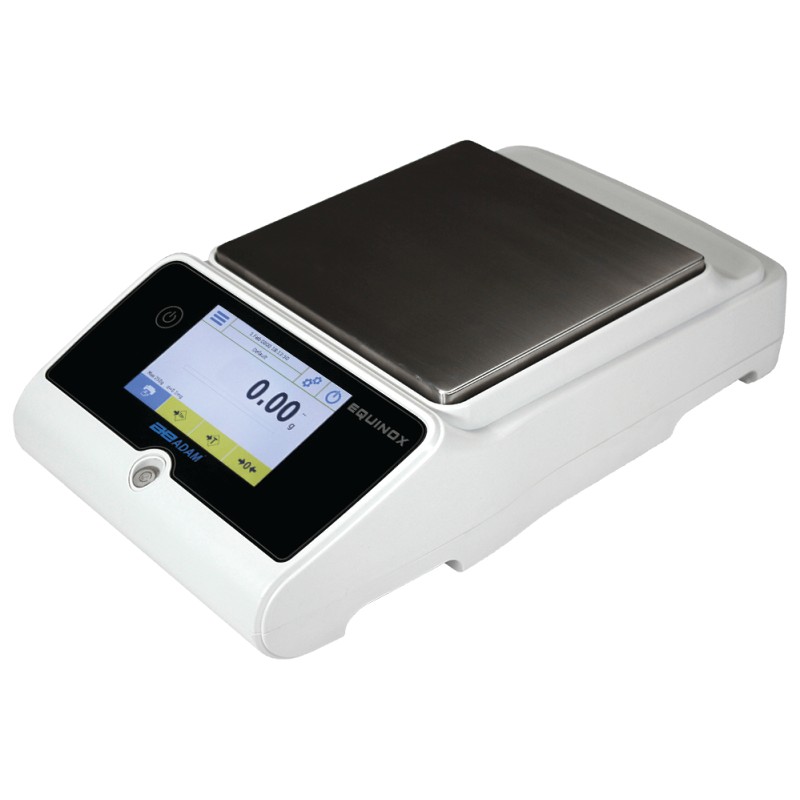

Equinox ETB 3202i Precision Balance (3200g Capacity)
To save time in fast-paced laboratory environments, a balance that is precise, yet still capable of measuring large samples can be very helpful. The
ETB 3202i Precision Balance (3200g Capacity) has a capacity range of 20g - 3200g, but offers 0.01g readability, making it ideal for such situations. It is very accessible and user-friendly due to its touchscreen display, and has a sizeable 185 x 185mm pan. Please note that a calibration certificate for this device must be purchased at the same time by ticking the box at the top of the page. You cannot purchase this certificate for a balance or scale that has already been ordered. What Are Precision Balances?
Precision balances are also known as 'top loading balances'. They don't provide the same level of precision as analytical or semi-micro balances, but are usually able to measure larger sample sizes with a far greater precision than standard scales, making them ideal for use in production, manufacturing or research.
Applications for the Equinox ETB 3202i Precision Balance
Designed to measure loads weighing up to 3200g to two decimals, the EPB 1203i Precision Balance is suitable for use in a number of applications, including:
Quality Assurance Science Education Research Production and Manufacturing Precision Counting Dynamic weighing (e.g. animal weighing) Textiles What Is the Capacity of the Equinox Balance?
The capacity of the ETB 3202i Balance ranges from 20g - 3200g, with a readability of 0.01g. Offering impressive precision for the quantity it can weigh, it is a great choice for applications in pharmaceutical manufacturing or production.
How Do I Operate the Equinox ETB 3202i Precision Balance?

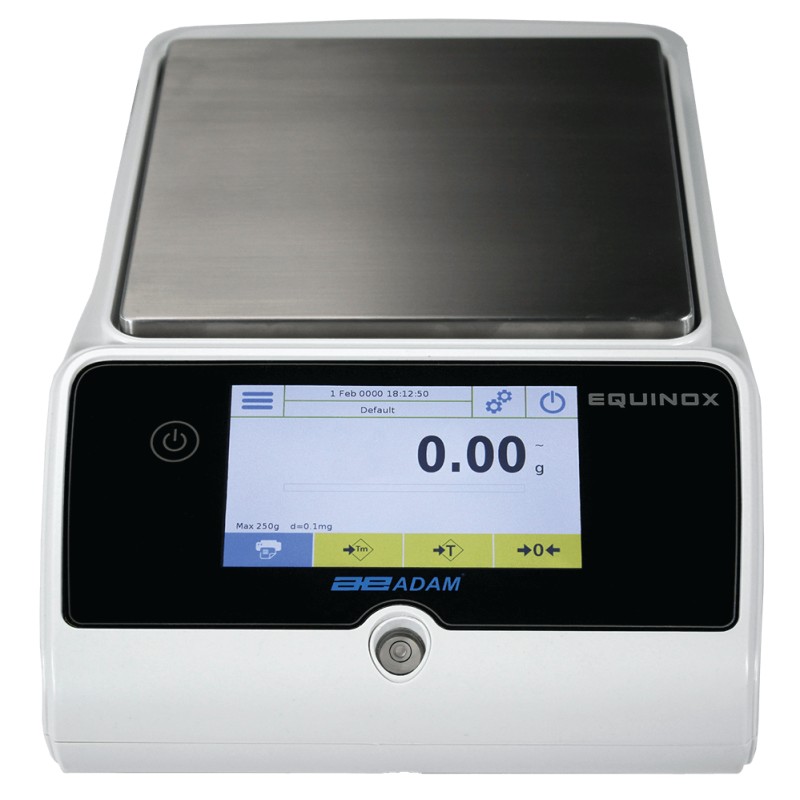

The Equinox ETB 3202i balance has a 5" (800 x 480 pixels) touchscreen display that is both easy to read and operate. In addition to multilingual capabilities, the icon-driven display makes the balance user-friendly and accessible. For detailed information on the set-up and use of your Equinox EPB Balance, please see the PDF Instruction Manual below:
User Instructions How Do I Calibrate the Equinox ETB 3202i Precision Balance?
The ETB 3202i Balance has an in-built automatic calibration function, which can help you save time in fast-paced laboratory environments. Unlike externally calibrating balance, the EPB 1203i can be set to configure itself before use and anytime environmental factors change, ensuring smoother, more efficient testing.
Date and Time Printouts for Data Traceability
In adherence with Good Laboratory Practise (GLP) guidelines, data printouts supplied by the Equinox EPB are time and date stamped for improved traceability. This can help you keep track of your processes for a more functional, organised laboratory environment.
What Security Features Does This Balance Have?
This balance comes with both physical and software-based security features. Firstly, the software allows users to make password-protected accounts, so settings cannot be changed and data cannot be accessed without proper authorisation. Secondly, a security slot compatible with Kensington-type locks can be engaged so the balance can't be taken out of the work place.
Specifications of the Equinox ETB 3202i Precision Balance (2100g Capacity) Capacity: 3200g Readability: 0.01g Repeatability: 0.005g Calibration: Internal Automatic Calibration Pan Size: 185 x 185mm Power Supply: 9VDC 1A adapter Interface: RS-232 (for computers and printers), USB (for memory cards etc.) Total Weight: 6.9kg Weighing Units: g, mg, ct, GN, lb, oz, dwt, mm, ozt, tl.H, tl.S, tl.T, T and custom unit Time to Stabilisation: 2 seconds Materials: ABS Plastic Linearity: 0.02g Operating Temperature: 10° to 30°C Display Size: 5" (800 x 480 pixels) Dimensions: 224 x 374 x 95mm (WxDxH) Key Features and Benefits VIDEO 5" colour touch-screen display is easy to read and interact with Printouts can be stamped with time and date for more coherent record-keeping Filtering function allows you to minimise the impact of vibrations Tare function (resets measurement to zero) allows you to measure samples with containers RS-232 interface allows you to connect quickly and easily to computers and printers Security measurements protect data and prevent unwanted setting changes Spirit level and adjustable feet help you achieve a more stable set up Multilingual display caters to different regions Are Other Models Available?
The Equinox ETB 3202i Precision Balance (6200g Capacity) is available in 10 other models, each with a varying maximum capacity or calibration type. The table below showcases these differing features and contain a link to each model.
Additional Documentation Calibration Certificate
All Adam Equipment scales and balances are calibrated before dispatch, and information on their performance and accuracy is recorded on their calibration certificates. You must purchase this certificate at the same time as your scale or balance by ticking the Adam Equipment Calibration Certificate box at the top of the page.
