equipment set for waveguide optics

The Equipment Set for Waveguide Optics is a complete modular experiment set for examining optical wavelength phenomena and their applications. It comes with a wide range of components plus universal plug-in power supplies and a case for secure and safe storage.

uses of the waveguide optics equipment set

The Equipment Set is suitable for a wide range of experiment topics, including:

• Tyndall's light guide experiment
• Attenuation in curved optical waveguides
• Attenuation in liquids
• Attenuation at optical transitions
• Setup for force measurement
• Setup of light barrier
• Setup for proximity sensor
• Transmission of audio signals
• Data transmission between two computers

contents of the equipment set

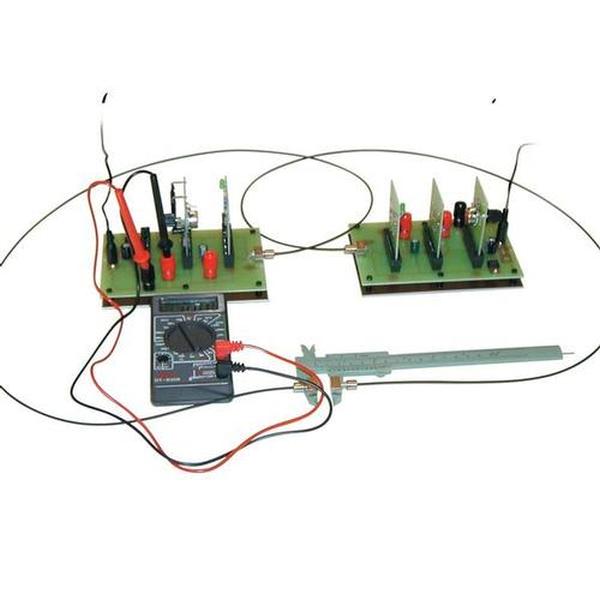

• 1 x base PCB for use as a transmitting and receiving module
• 1 x analogue transmitting and receiving unit
• 1 x digital transmitting and receiving unit
• 1 x microphone amplifier and low-frequency generator
• 1 x low-frequency amplifier with integrated loudspeaker
• 1 x USB interface for transmitter and receiver
• 1 x digital multimeter,
• Sheathed and unsheathed optical fibres of different lengths
• Connecting cables
• Universal plug-in power supplies: 100 - 240V AC (primary), 9V DC (secondary)

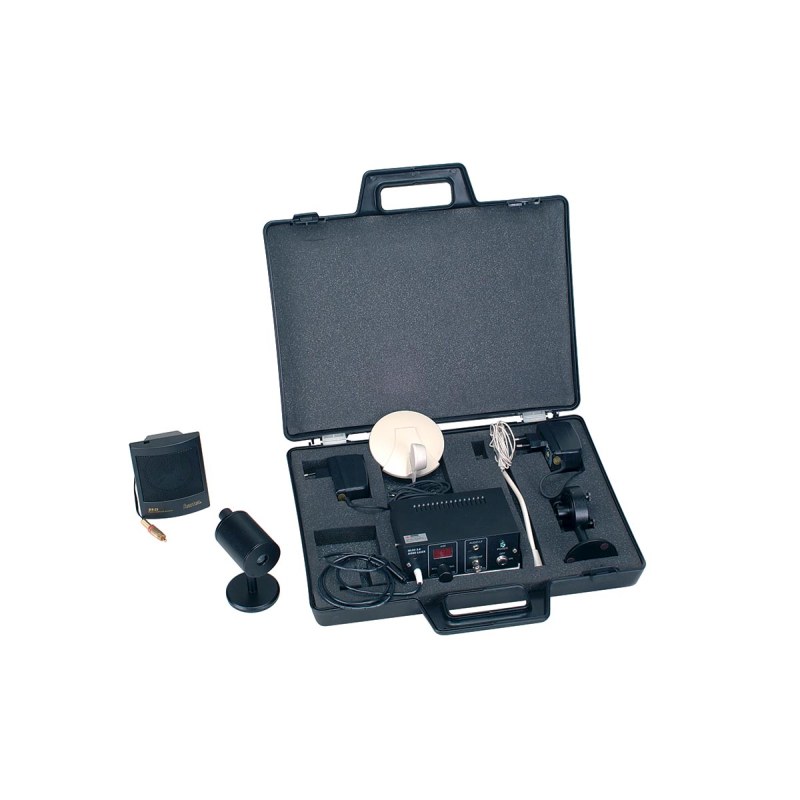

• Storage case
