The Helical Springs are designed for experiments on expansion and oscillation. The springs are available in different lengths and diameters and feature two suspension eyelets.
Technical Specifications of the Helical Springs
The technical specifications for each spring in the Helical Springs are:
|Spring Constant ||Length ||Diameter |

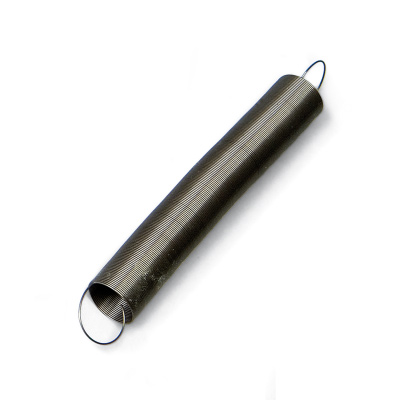

|1.5N/m ||120mm ||20mm |

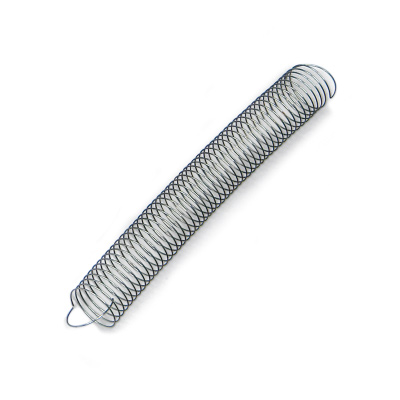

|2.5N/m ||122mm ||16mm |

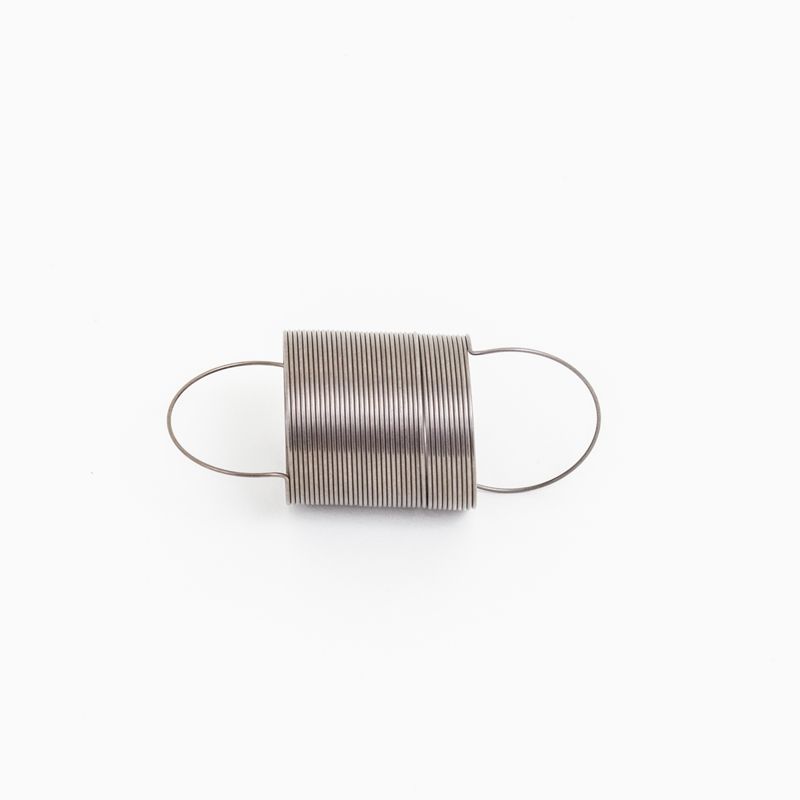

|3.9N/m ||30mm ||34mm |

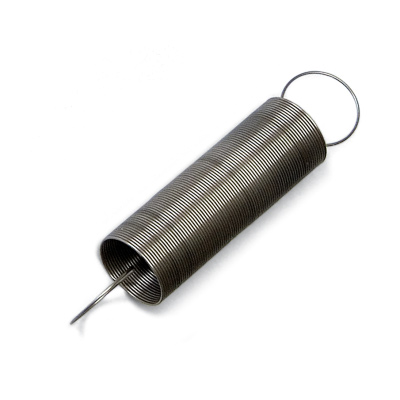

|5N/m ||60mm ||20mm |
|115mm ||6mm |

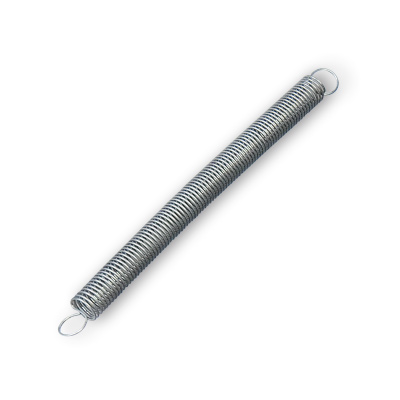

|43N/m ||110mm ||9mm |

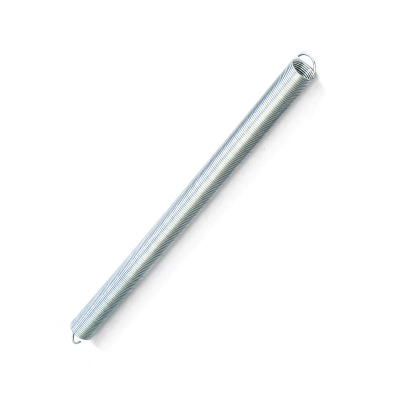

|20N/m ||180mm ||8mm |

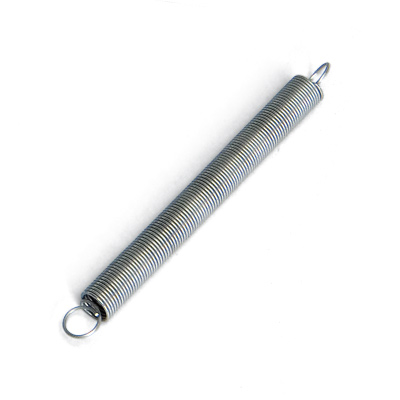

|86N/m ||95mm ||10mm |
Every Helical Spring has a tolerance of 10%.
