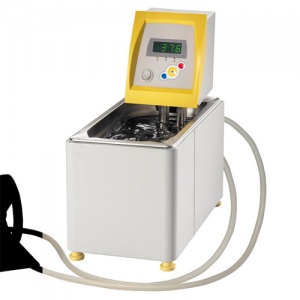

Immersion/Circulation Thermostat

The Immersion/Circulation Thermostat is for setting the temperature of a bath or external apparatus with non-flammable liquids at temperatures up to 95°C. The fully electronic continuous regulator and the powerful circulating pump ensure that the water in the bath is optimally stirred so that the temperature remains highly constant. The user-friendly menu and simple three-button operation guarantee that the equipment is easy to use. A single-row LED display indicates the desired temperature and the actual temperature. Excess temperature protection is set to a fixed value of 95°C and features both audible and visual alarms to enhance operating safety. Also included is the possibility of connecting a water cooler or heat exchanger to provide cooling by means of tap water.

Specifications

• Operating-temperature range: 25°C – 85°C
• Temperature constancy: ±0.05°C
• Heating power: 1.5kW
• Pump pressure: max. 0.2 bar
• Delivery rate: max. 15 l/min
• Bath volume: max. 5.5L
• Bath area / depth: approx. 145 x 161/150mm³

Compatible Equipment

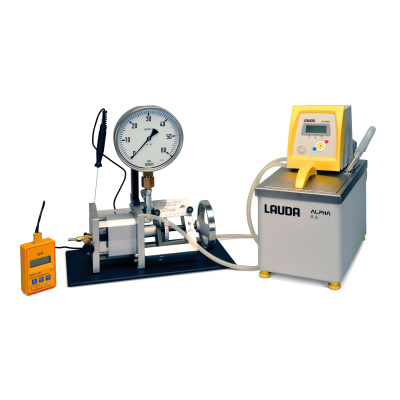

• P1002670 Critical Point Apparatus
