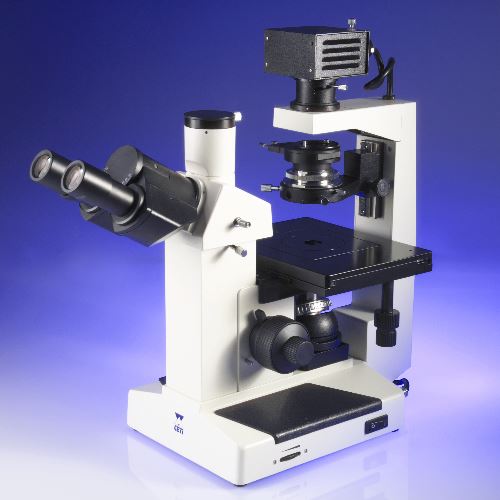

Inverso TC Inverted Biological Microscope
The Inverso TC Inverted Biological Microscope is an inverted microscope for both routine and research level work, complete with a trinocular head, quadruple position nosepiece and a beam splitting prism for optimizing the halogen illumination. The Inverso TC Inverted Biological Microscope has long working distance objectives and a selection of eyepieces to provide a magnification range from 40x up to 800x.
The Inverso TC Inverted Biological Microscope stage features a removable microplate holder with XY movement and the swing-out condenser allows tissue culture flasks up to 70mm thick to be viewed with ease.
Specifications For The The Inverso TC Inverted Biological Microscope
|Optical head ||Trinocular, inclined at 30º (Siedentopf) |
|Eyepieces ||10x / 18mm wide-field |
|Objectives ||10x, 25x, 40x Planachromatic LWD / 10x, 25x, 40x, Phase contrast |
|Condenser ||Swing Out - LWD N.A. 0.40 |
|Focusing ||Coaxial coarse and fine |
|Stage ||Size 220 x 220mm, built-in mechanical stage |
|Illumination ||Halogen 30W |
