Kundt's Tube E Kit

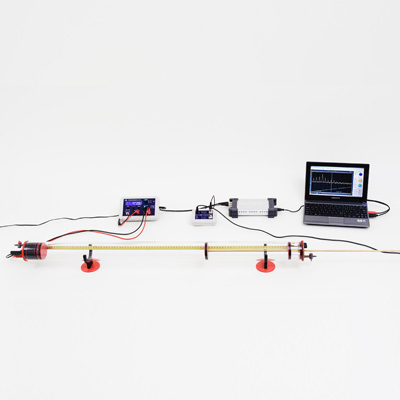

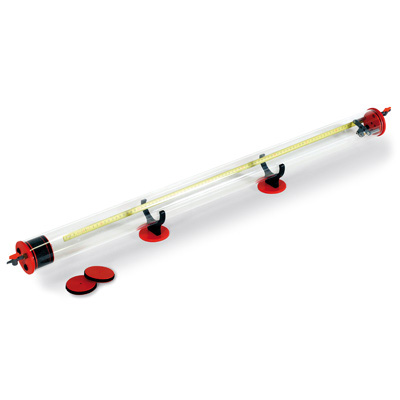

Kundt's Tube E is a sound tube made of transparent acrylic with loudspeaker and movable scale for quantitative investigation of sound waves in air or other gases. Kundt's Tubes are used in particular for the measurement of wavelength and speed of sound.

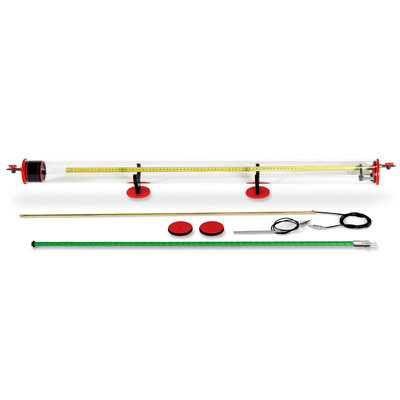

Included With the Kundt's Tube E Kit

This scientific kit includes the following components as well as the tube itself:

• 2 x stand bases
• 1 x capillary disc
• 1 x sensor disc
• 2 x hose connectors with stopcock for filling with gas
• 1 x fitting and guide for long microphone probe
• Hole for short microphone probe

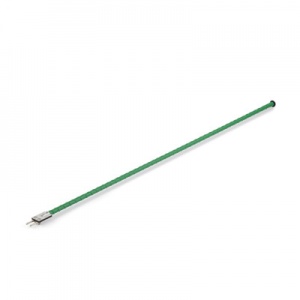

• Holder and connector for Heating Rod K

Specifications

• Frequency range: 20 to 5000Hz
• Length of sound tube: 1000mm
• Diameter of sound tube: 70mm
• Scale: 950mm
• Hose connectors: 5mm diameter
• Speaker power output: 3W
• Impedance of speaker 50Ω
• Weight: Approximately 1.25kg
