Laser Ray Box
 Laser Ray BoxLaser Ray Box

Laser Ray Box

£258.33 exc. 20% VAT(£310.00 Inc. VAT)
  • Laser ray box for light rays
  • Produces up to 5 parallel rays
  • Sturdy metal housing
  • Mains or battery powered
Full details...

Please Note: We are currently experiencing a temporary delay in shipping this product due to recent issues surrounding Brexit. We apologise for any inconvenience caused and we are advising you to allow an additional two weeks for the delivery of this item.

Fast UK DeliveryPurchase OrdersAsk an expert

Laser Ray Box

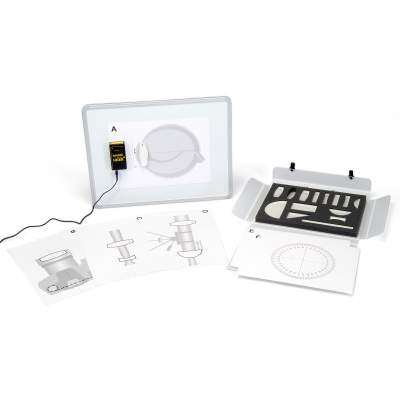

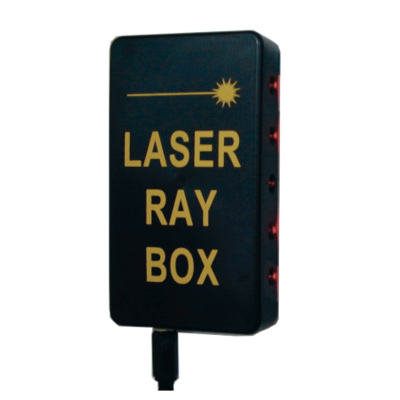

The Laser Ray Box is a laser diode capable of producing up to five parallel rays, for use with a suitable mounting board. Contained in metal housing with magnetic foil, the number of emerging light beams emitted from the box can be selected electronically via switches. Power is supplied via a plug-in unit or batteries that are automatically disconnected after 60 minutes.

Experiment Topics

  • Law of refraction
  • Law of reflection
  • Total reflection
  • Determining the focal length of curved mirrors and lenses
  • Lens laws
  • Correction of spherical aberration
  • Short-sightedness and long-sightedness of the human eye and correction of such defects
  • Beam paths in cameras, microscopes and telescopes


  • Diode laser: 5 beams, each max. 1mW, Laser safety class II
  • Wavelength: 635nm
  • Separation of laser beams: 18mm
  • Plug-in power supply: Primary 100 – 240VAC,
  • Secondary 3V DC, 300mA
  • Battery compartment: for 2 x 1.5 V AA-batteries (batteries not included)
  • Dimensions: 110x60x20mm³

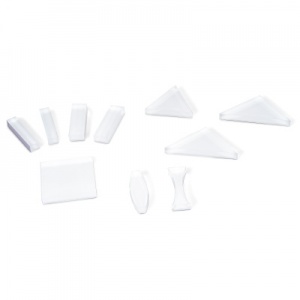

Compatible Equipment

Delivery Information

The Laser Ray Box is usually delivered within 3 to 5 working days of ordering via UPS courier.

If you would like up to the minute delivery and tracking information for your order, please contact the Lab World Customer Care Team by telephone on 020 7501 1105 or by email using the form below. We look forward to helping you with your enquiry.
