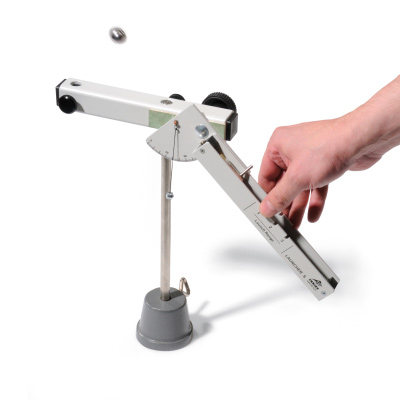

Launcher S

The Launcher S is a projectile launcher for studying trajectories at vertical positions, horizontal positions and at intermediate angles.  It can also be used to demonstrate how horizontal and vertical motion of projectiles are independent.

The angle of launch can be set to any arbitrary angle thanks to the built-in protractor scale and plumb line.

Different Launch Velocities

The launcher can launch projectiles at three different velocities, enabling a range of experiments on trajectories to be performed.

Multiple Releases

Two balls can be released simultaneously from both sides of the launcher, the lower of which will descend in free fall.

Technical Specifications of the Launcher S

The technical specifications of the Launcher S are:

• Launch angle: 0° to 90°
• Maximum range: 4m
• Projectile diameter: 16mm
• Projectile weight: 17g
• Dimensions:
  • Length: 280mm
  • Width: 90mm
  • Height: 90mm
• Total weight (approximate): 950g

Required Equipment

• 2 x Stainless Steel Rods 12mm - 470mm length
• 2 x Table Clamp
