LED Graetz Bridge in 3B Box
  Zoom

LED Graetz Bridge in 3B Box

£26.13 exc. 20% VAT(£31.36 Inc. VAT)

Availability

Usually delivered within 10 working days

Usually delivered within 10 working days

  • LEDs positioned in a Graetz configuration
  • Positioned in an electrically safe box
  • Printed with circuit symbols for easy identification
  • Straightforward and easy to use
Full details...
Fast UK DeliveryPurchase OrdersAsk an expert

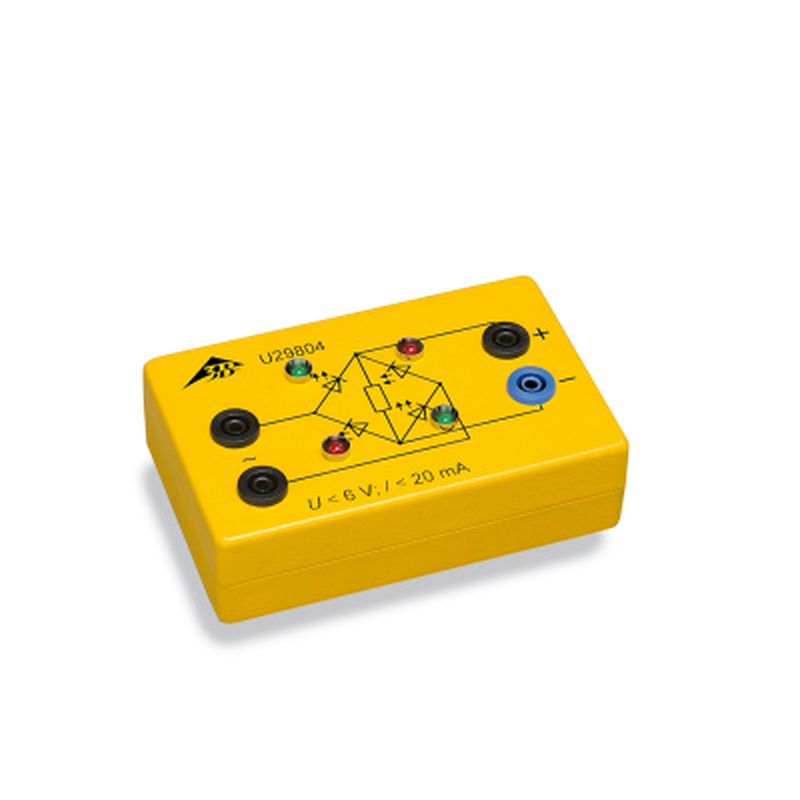

LED Graetz Bridge in 3B Box

The LED Graetz Bridge in 3B Box consists of four LEDS connected in a Graetz configuration to form a bridge rectifier circuit. The Graetz bridge is most commonly used for converting alternating current (AC) into dirrect current (DC). Positioned in an electrical safe box, the bridge is designed for simple electric circuits made using safety equipment leads. For ease of identification, the circuit symbol is printed on the box.

Features of the LED Graetz Bridge in 3B Box

  • Bridge rectifier circuit
  • 4 x LEDs connected in Graetz configuration
  • Placed in an electrical safe box
  • Designed for simple electrical circuits
  • Suitable for safe experiment leads
  • Printed circuit symbols for easy clarification
  • Straightforward and easy to use
  • Suitable for converting AC into DC current

Technical specifications of the LED Graetz Bridge in 3B Box

  • Maximum voltage: 12V
  • Maximum current: 20mA
  • Dimensions: 135 x 85 x 40mm³
  • Weight: 0.001kg

Delivery Information

The LED Graetz Bridge in 3B Box is usually delivered within 3 to 5 working days of ordering via UPS courier.

If you would like up to the minute delivery and tracking information for your order, please contact the Lab World Customer Care Team by telephone on 020 7501 1105 or by email using the form below. We look forward to helping you with your enquiry.

 *
 *
 *

Customer Reviews

Be the first to Write a Review for this item!

You may also be interested in...
3B Microscope Slide Box

3B Microscope Slide Box

  • Stores several slides at once
  • Safely secures the slides in a sturdy box
  • Keeps the slides organised for quick access
  • Straightforward and easy to access
Usually delivered within 10 working days  Usually delivered within 10 working days
From:  £33.45
(exc. 20% VAT)View Info...

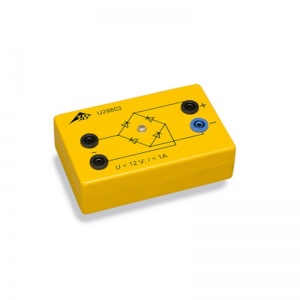

Graetz Bridge in 3B Box
