Magnum Fluorescence Microscope with LED Illumination

£5,485.71 exc. 20% VAT(£6,582.85 Inc. VAT)

Availability:

In stock now

Designed for both brighfield viewing and the fluorescent examination of samples.
With a turret based fluorescent system.
4 built in filter blocks as standard and a 5th brightfield viewing position.
Fluorescent light source from a 100W Mercury bulb.

Full details...

Product Information

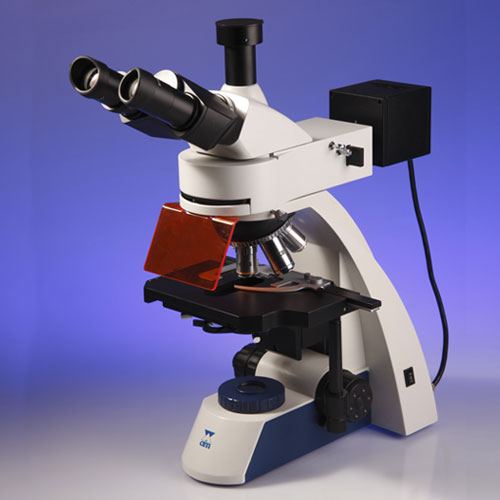

MAGNUM FLUORESCENCE MICROSCOPE WITH LED ILLUMINATION

The Magnum Fluorescence Microscope with LED Illumination is designed for both brightfield viewing and the fluorescent examination of samples. The Magnum Fluorescence Microscope with LED Illumination comes with a turret based fluorescence system with four built in filter blocks as standard and a 5th brightfield viewing position.

The Magnum Fluorescence Microscope with LED Illumination has a fluorescent filters blue / green / ultraviolet / violet.

SPECIFICATIONS FOR THE MAGNUM FLUORESCENCE MICROSCOPE WITH LED ILLUMINATION

Optical head	Trinocular, inclined at 30º
Eyepiece	10x / 20mm wide-field (pair)
Objectives	4x, 10x, 40x, 100x Planachromatic Infinity Corrected
Condenser	Brightfield Abbe - NA 0.90 - NA1.25 oil
Stage	Size 210 x 140mm with built-in mechanical stage and slide clip
Focusing	Coaxial coarse and fine
Illumination	Halogen 30 (transmitted) and LED (reflected)
Fluorescent filters	Blue / Green / Ultraviolet / Violet
