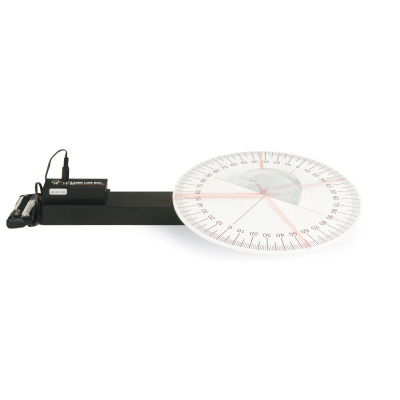

Optical Disc with Diode Laser

The Optical Disc with Diode Laser is a set of apparatus for a comprehensive and easily understandable introduction to the basic principles of refraction and reflection of light. Ideal for student demonstrations, the laser can be easily attached via its built-in magnet and aligned on the end of the metal base. The rotating optical disc has an angular scale with 1° divisions and marked lines to position the elements.

The set includes a semi-circular disc and an equilateral prism for use in optical experiments, as well as a plug-in mains-adapter power supply and a battery compartment (batteries are not included).

Specifications

• Diode Laser: 1 beam, Class II
• Output power: <1mW
• Wavelength: 635nm
• Operating voltage: 3V DC
• Battery-box: for 2 x 1.5V batteries (AA, LR6, MN1500, Mignon)
• Laser ray box: 80 x 25 x 21mm³
• Metal base: 320 x 40 x 35mm³
• Optical disc: 250mm dia.
• Semicircular element: 90mm dia.
• Prism: 100mm equilateral

Compatible Equipment

• P1003191 Semicircular Cell
