red laser diode

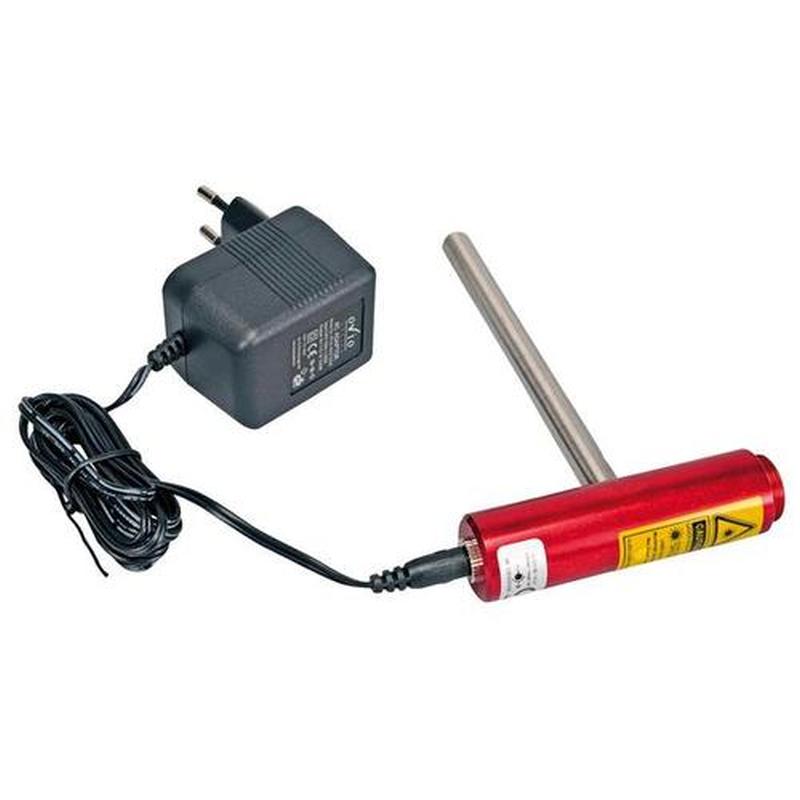

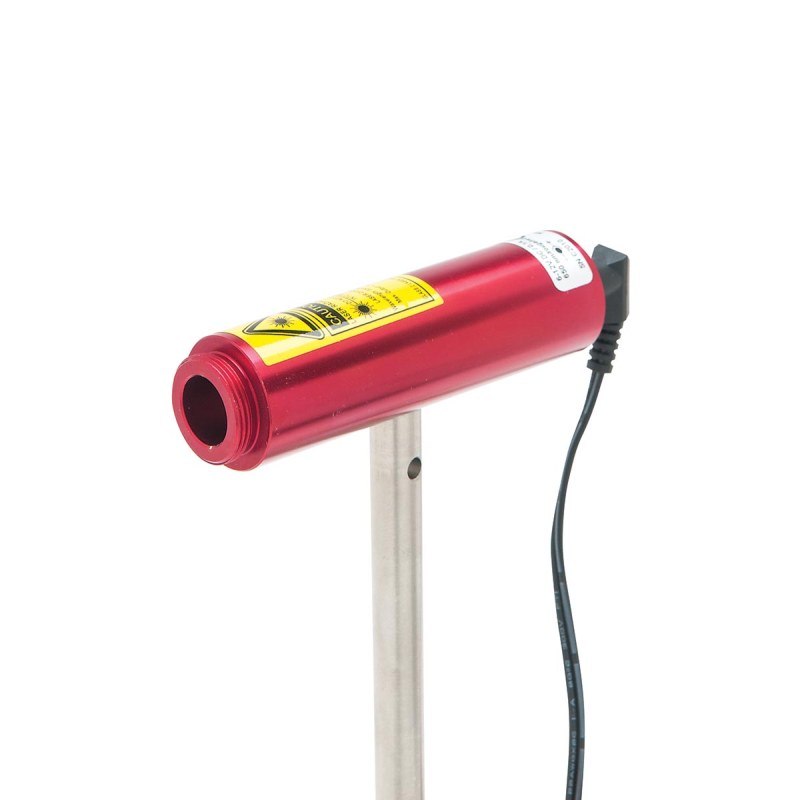

The Red Laser Diode is a red light source giving a beam with minimal divergence, housed in a compact and sturdy aluminium body. It is based on a 650nm class II industrial laser module with a glass collimating lens, and comes with a 100 - 230V AC/DC converter.

benefits of the red laser diode

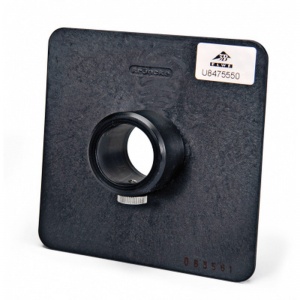

The Red Laser Diode has been expertly made for optical experiments, with minimal divergence and a tough, durable construction. It can be used with the Kroncke Optics optical system by combining it with the Kroncke Optics Holder K for Diode Laser, to perform a range of experiments, or used with other optical systems that use optical riders compatible with components on a stem.

features of the red laser diode

• Red light source giving a beam with minimal divergence
• Housed in a compact and sturdy aluminium body
• Based on a 650nm class II industrial laser module with glass collimating lens
• Can be used with the Kroncke Optics Holder K
• Comes with a 100 - 230V AC/DC converter
• Fitted with a 10cm stainless steel rod

specifications of the red laser diode

• Laser protection class: II
• Ouput power: 0.9 - 1mW at 20ºC
• Wavelength: 650nm +/- 5nm
• Spot size at 5m distance: <8 mm diameter
• Divergence: <1mrad
• Operating voltage: 6 - 12V DC
