Training Oscilloscope

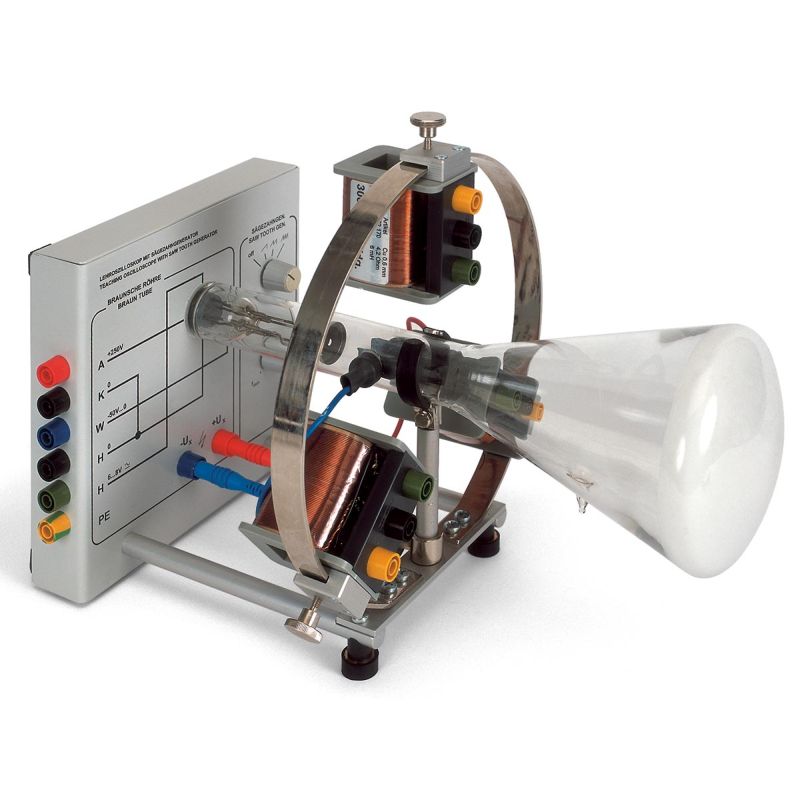

The Training Oscilloscope consists of an electron tube mounted on a terminal base and is designed for the investigation of design and operation of a cathode ray tube. Integrated deflection plates and external coils are used to deflect the electron beam while a Wehnelt cylinder is used to focus said beam. The fluorescent screens and gas renders the beam visible. An adjustable generator is used to both analyse and visualise time dependent processes.

Features of the Training Oscilloscope

  • Electron tube mounted on terminal base
  • Designed to experiment with a cathode ray
  • Integrated deflection plates
  • Wehnelt cylinder
  • Saw-tooth generator to monitor time dependent processes
  • Fluorescent screens
  • Low pressure gas
  • Visible beam
  • Socket
  • Printed writing diagram

Technical Specifications of the Training Oscilloscope

  • Anode voltage: 250-350V DC
  • Anode current: 1mA
  • Filament voltage: 6-8V AC/DC
  • Filament current: 0.3A
  • Wehnelt voltage: 0-50V DC
  • Deflection plate dimensions: 12 x 20mm²
  • Plate spacing: 14mm
  • Electric deflection sensitivity: 0.2mm/V
  • Screen diameter: 100mm
  • Tube length: 260mm
  • Residual gas: Neon
  • Gas pressure: 10-4  hPa
  • Sweep frequency: 10-200Hz (continuously adjustable)
  • 3 deflection coils: 600turns each with centre pick up
  • Weight: 1.6kg
