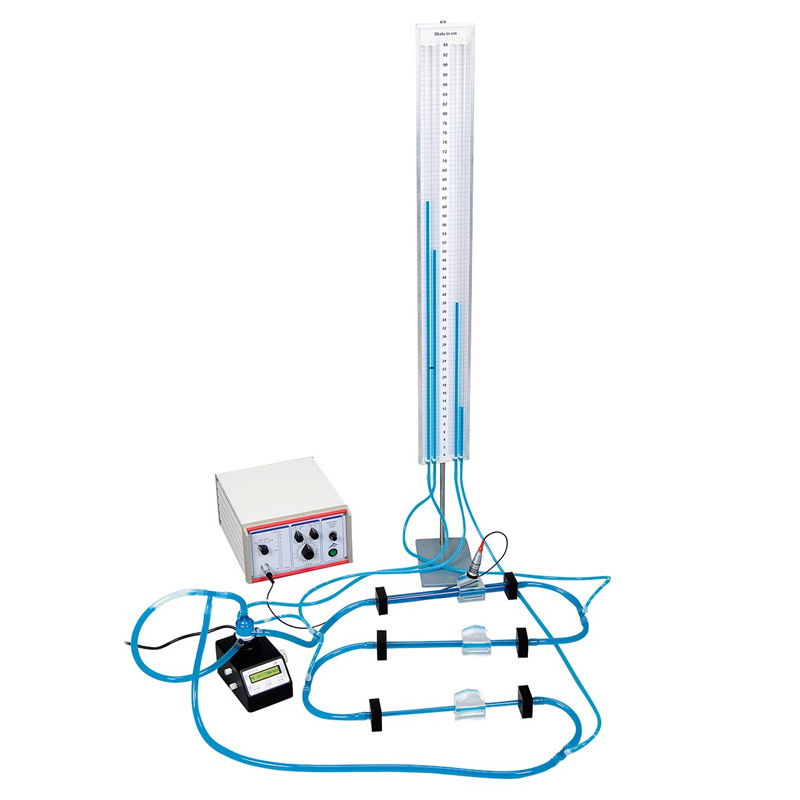

Ultrasonic Doppler Apparatus

The Ultrasonic Doppler Apparatus is a control unit for conducting ultrasonic Doppler experiments. Detecting scattered waves and generating an audio signal at a volume that reflects reflected wave amplitude, the apparatus also generates a frequency that reflects the speed of the scattering. Radiated or scattered waves from moving particles or bubbles in fluid flow allow the apparatus to detect the Doppler shift in frequency. The amplitude is also displayed on an LED bar display and sensitivity and volume are both adjustable. The controller can also pass on data to a PC for detailed recording and evaluation, Windows OS software is supplied for data evaluation and analysis. During measurement the current LF Doppler signal is displayed. Evaluation is by means of a Fourier transformation in the frequency domain and the result can be interpreted as the distribution of velocity within the flow.

Experiment Topics

• Investigation of flowing liquids using ultrasonic waves
• Experiments on the Doppler principle
• Measurement of flow velocities
• Demonstration of laminar and turbulent flow
• Experiments on the continuity equation, Bernoulli's equation (static and dynamic pressure) and the Hagen-Poiseuille law (resistance to flow)

Specifications

• Frequency: 1, 2, & 4MHz
• Gain: 10 – 40dB
• Display: LED bar display and acoustic signal with volume control
• PC connector: USB
• Mains voltage: 90 – 230V, 50/60Hz
• Dimensions: approx. 256 x 185 x 160mm³

Required Equipment

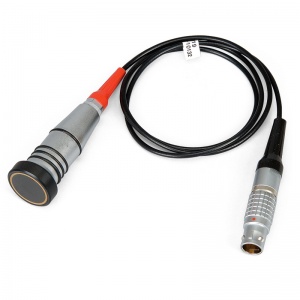

• P10018618 Ultrasonic Probe 2MHz

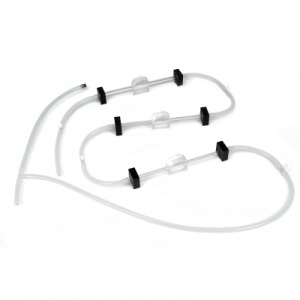

• P1002572 Set of Doppler Prisms and Flow Tubes
• P1002573 Riser Tubes for Pressure Measurement
• P1002575 Centrifugal Pump
• P1008575 Ultrasonic Coupling Gel
