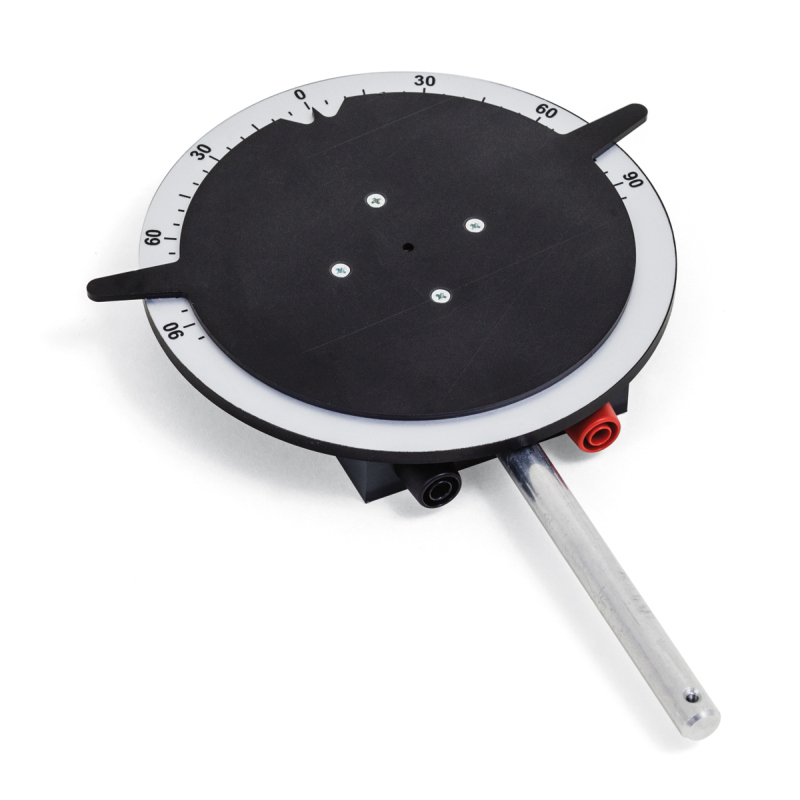

Pockels Cell on Stem

The Pockels Cell on Stem is a transverse Pockels cell for demonstrating linear electro-optic effect, and measuring half-wave voltage of a lithium niobate crystal. The pockels cell features an accurate, free-moving and smooth angle adjustment for demonstrating double refraction, in conjunction with a polarisation filter used as an analyser.

The Pockels cell is mounted on a stem, making it compatible with an Optical Rider D for use on the Optical Precision Bench D.

Uses of the Pockels Cell on Stem

The Pockels cell is suitable for a range of experiment topics, such as:

• Pockels effect (linear electro-optic effect)
• Photorefractive crystal with no inversion centre
• Occurrence and modification of double refraction in external electric fields
• Half-wave voltage
• Modulation of refractive index

Specifications of the Pockels Cell

• Dimensions: 156 x 26 x 218mm
• Weight: 206g
• Crystal: Lithium niobate (LiNbO₃) 20 x 2 x 2mm
• Connectors: 4mm safety sockets

Compatible Equipment

• Optical Precision Bench D
• Optical Rider D
• Polarisation Filter on Stem
• He-Ne Laser
