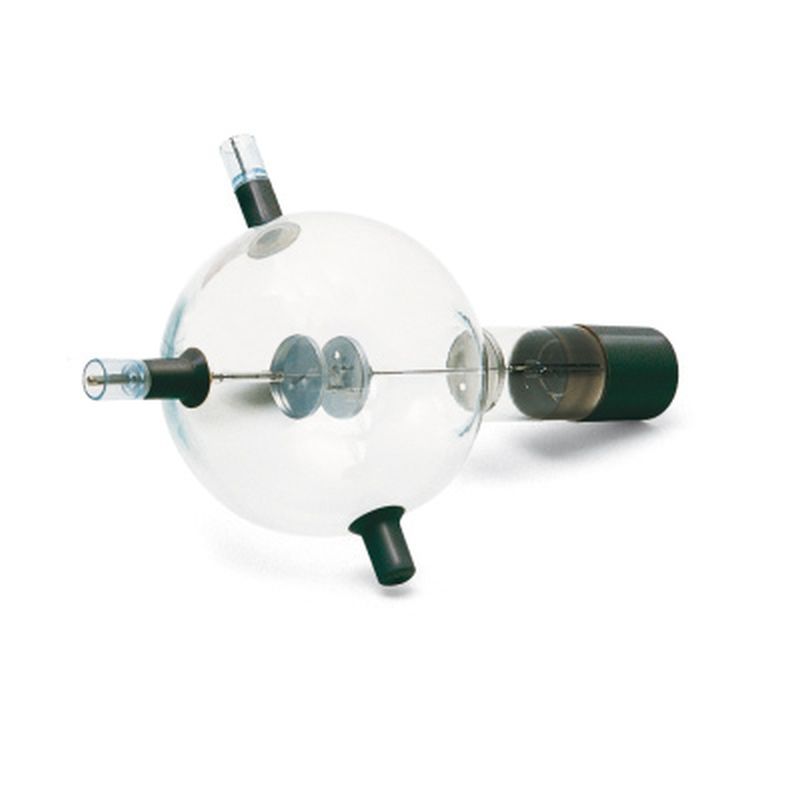

Teltron Diode D

The Teltron Diode D is a highly evacuated electron tube with both a thermionic cathode and anode. The tube is suitable for measuring the Edison effect and for investigating the emission current generated by the heating power/voltage applied to the cathode. The rectification process allows plotting of the diode characteristics.

Features of the Teltron Diode D

• Vacuum electron tube
• Thermionic cathode and anode
• Suitable for the Edison effect
• Compare emission current against voltage
• Plot diode characteristics
• Explore the rectifying effect of a diode
• Visible results

Technical Specifications of the Teltron Diode D

• Maximum heater voltage: 7.5V AC/DC
• Maximum anode voltage: 500V
• Anode current: 2mA at 200V
• Glass bulb: 130mm diam
• Total length: 260mm

Required Equipment for the Teltron Diode D

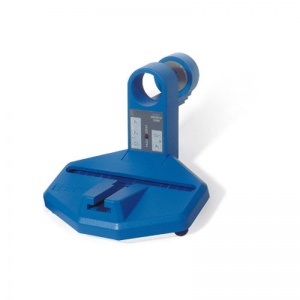

• Tube Holder D
• Set of leads for the electron tube experiments
• Analogue Multimeter Escola
• DC Power Supply, 0-500V (230V, 50/60Hz) OR DC Power Supply, 0-500V (115V, 50/60Hz)

Compatible Equipment for the Teltron Diode D

• Two-Pole Protective Adaptor

Delivery Information

The Teltron Diode D is usually delivered within 3 to 5 working days of ordering via UPS courier.
