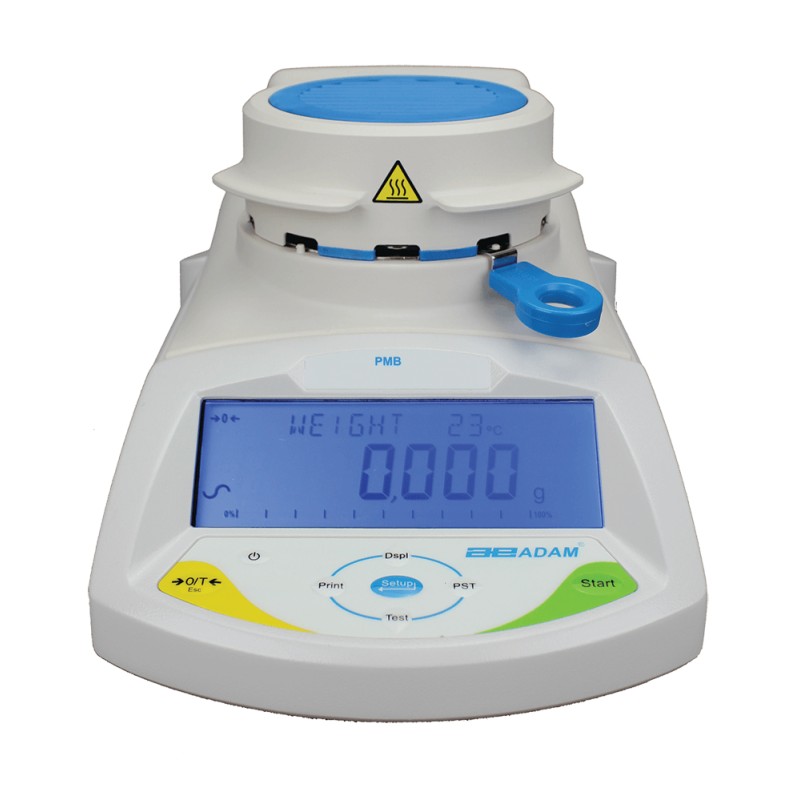

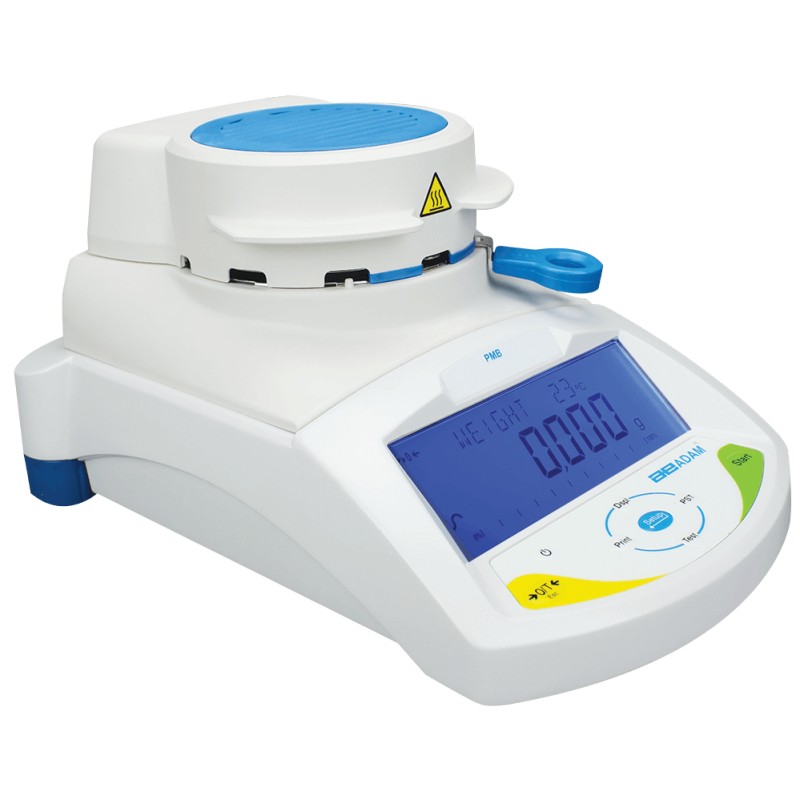

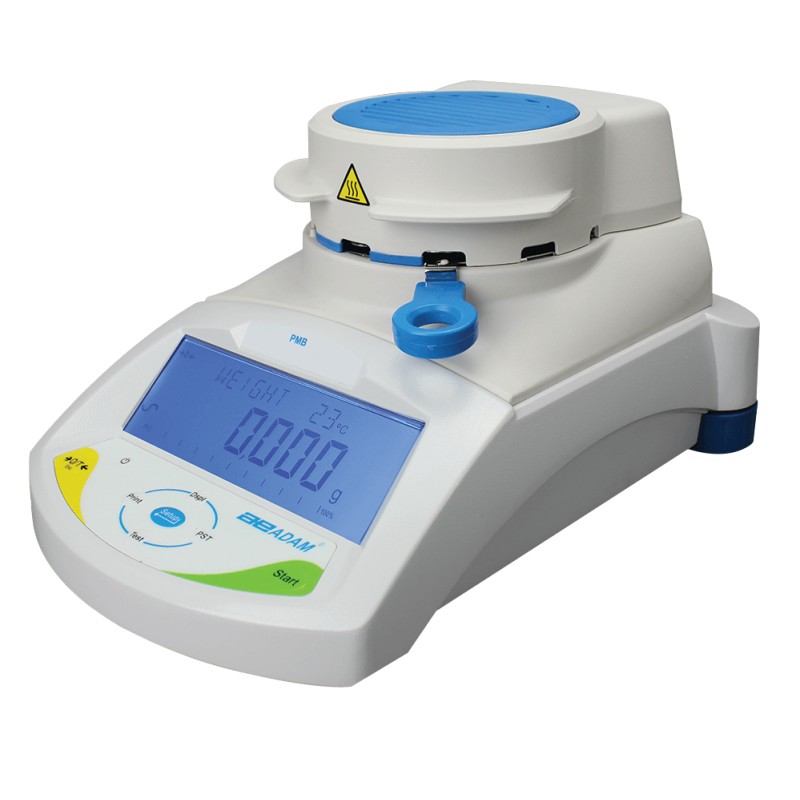

PMB 163 Moisture Analyser

The PMB 163 Moisture Analyser is designed to facilitate fast, accurate moisture analysis. It has a capacity of up to 160g, allows you to customise the temperature as well as the manner of drying, and can produce results more quickly than both the KF titration method and oven testing method.

Please note that a calibration certificate for this device must be purchased at the same time by ticking the box at the top of the page. You cannot purchase this certificate for a balance or scale that has already been ordered.

What Are Moisture Analysers?

Moisture analysers can be used in quality assurance or other applications to determine the amount of liquid in a substance. A sample is weighed by the device, then dried and re-weighed. The amount of mass lost will reveal the original moisture content of the substance.

Applications for the PMB 163 Moisture Analyser

Able to determine the moisture of a sample weighing up to 160g, the PMB Moisture Analyser 53 can carry out vital functions in professional testing environments. It is suitable for:

  • Weighing
  • Moisture determination

What Is the Capacity of the PMB 163 Moisture Analyser?

The PMB 163 Moisture Analyser has a reasonably large weight capacity of 160g, so can be used to dry relatively large samples. To help you measure your substances as accurately as possible, there is a visible capacity tracker on the display screen and an audible alarm that is triggered when this capacity is exceeded.

How Do I Use the PMB 163 Moisture Analyser?

For optimum efficiency in busy lab settings, the PMB Moisture Analyser is designed to be as easy to operate as possible and features colour-coded keys highlighting commonly used functions. For further instructions on the set-up, calibration and use of your Moisture Analyser, refer to the PDF Instruction Manual below:

User Instructions
User Instructions for the PMB 163 Moisture Analyser

Customisable Conditions

The PMB Moisture Analyser puts you firmly in control of your test conditions. It features an adjustable temperature ranging from 50°C - 160°C and three different drying modes (constant, stepped or ramp-up). If you are looking for more standardised conditions, you can also choose from seven different pre-set drying modes.

How Efficient Is the PMB Moisture Analyser?

You won't have to waste any precious time during your tests thanks to the PMB Moisture Analyser. Its internal memory allows you to store up to 49 different recipes and 99 test results, enabling quick and efficient calibration. Ensuring you'll never forget to start an analysis, it can also be set to begin processing the moment the lid is shut.

Date and Time Printouts for Traceability

You can set your PMB Moisture Analyser to print a report after each configuration. In adherence with Good Laboratory Practise (GLP) guidelines, all printouts will be marked with the date, time, analyser number and confirmation of the calibration.

Security Feature

The PMB Moisture Analyser comes with a slot for Kensington-type locks and cables. You can engage this slot to help protect the balance against theft.

Specifications of the PMB 163 Moisture Analyser

  • Capacity: 160g
  • Readability: 0.001g / 0.01%
  • Repeatability: 0.001g
  • Calibration: External Calibration (weight and temperature)
  • Pan Size: 100mm diameter
  • Power Supply: Mains power cord
  • Interface: RS-232 (for computers and printers), USB (for memory cards etc.)
  • Total Weight: 6kg
  • Weighing Units: g, %M, %S, ATRO %M, ATRO %S
  • Time to Stabilisation: 3 seconds
  • Materials: Die-cast aluminium
  • Linearity: 0.002g
  • Operating Temperature: 0° to 40°C
  • Dimensions: 250 x 360 x 185mm (WxDxH)

Key Features and Benefits

  • Device is protected by outer aluminium casing
  • Colour-coded keys enable straightforward navigation
  • Pan lifter makes inserting and removing samples quick and easy
  • Three different heating settings allow you to customise your tests
  • Visible tracker shows you when max capacity is exceeded
  • Memory holds up to 49 'recipes' and 99 test results
  • Seven pre-set drying modes available
  • Temperature range spanning from  50°C -160°C
  • Temperature can be increased incrementally
  • Printouts are marked with date and time for improved data tracking
  • Security slot for Kensington lock and cable reduces risk of theft
  • RS-232 interface enables quick communication to computers and printers
  • Multilingual capability makes device more accessible

Are Other Models Available?

The PMB Moisture Analyser is available in two other models, each with a varying maximum capacity. The table below showcases these capacities and contains a link to each model:

Model Code Capacity Calibration

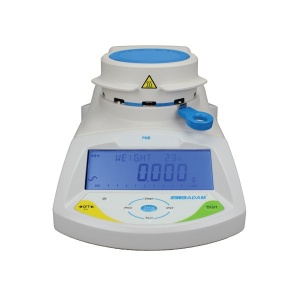

PMB 53 50g External

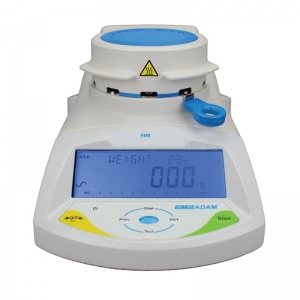

PMB 202 200g External

Additional Documentation

Calibration Certificate

All Adam Equipment scales and balances are calibrated before dispatch, and information on their performance and accuracy is recorded on their calibration certificates. You must purchase this certificate at the same time as your scale or balance by ticking the Adam Equipment Calibration Certificate box at the top of the page.
